2.2.1 Operator Panel Overview
The system administrator or service engineer checks the operating status of the
server with LEDs or operates the power supply with the power switch.
FIGURE 2-4
shows the location of the operator panel.

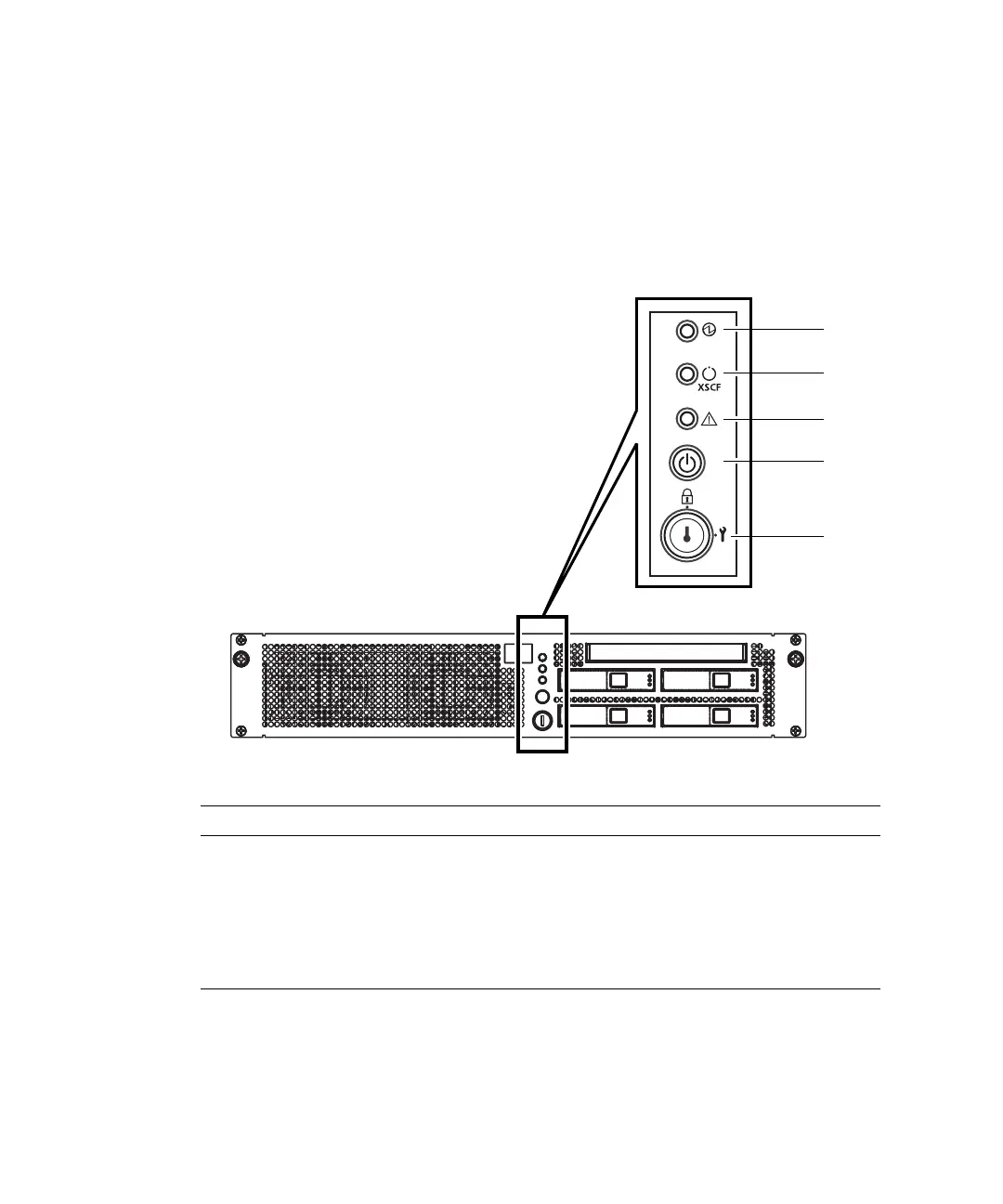

FIGURE 2-4 Operator Panel Location
Location Number Component
1 POWER LED
2 XSCF STANDBY LED
3 CHECK LED
4 Power button
5 Mode switch (key switch)
1
2
3
4
5
