Furuno NAVpilot-711C User Manual

6. INSTALLATION AND WIRING
6-7

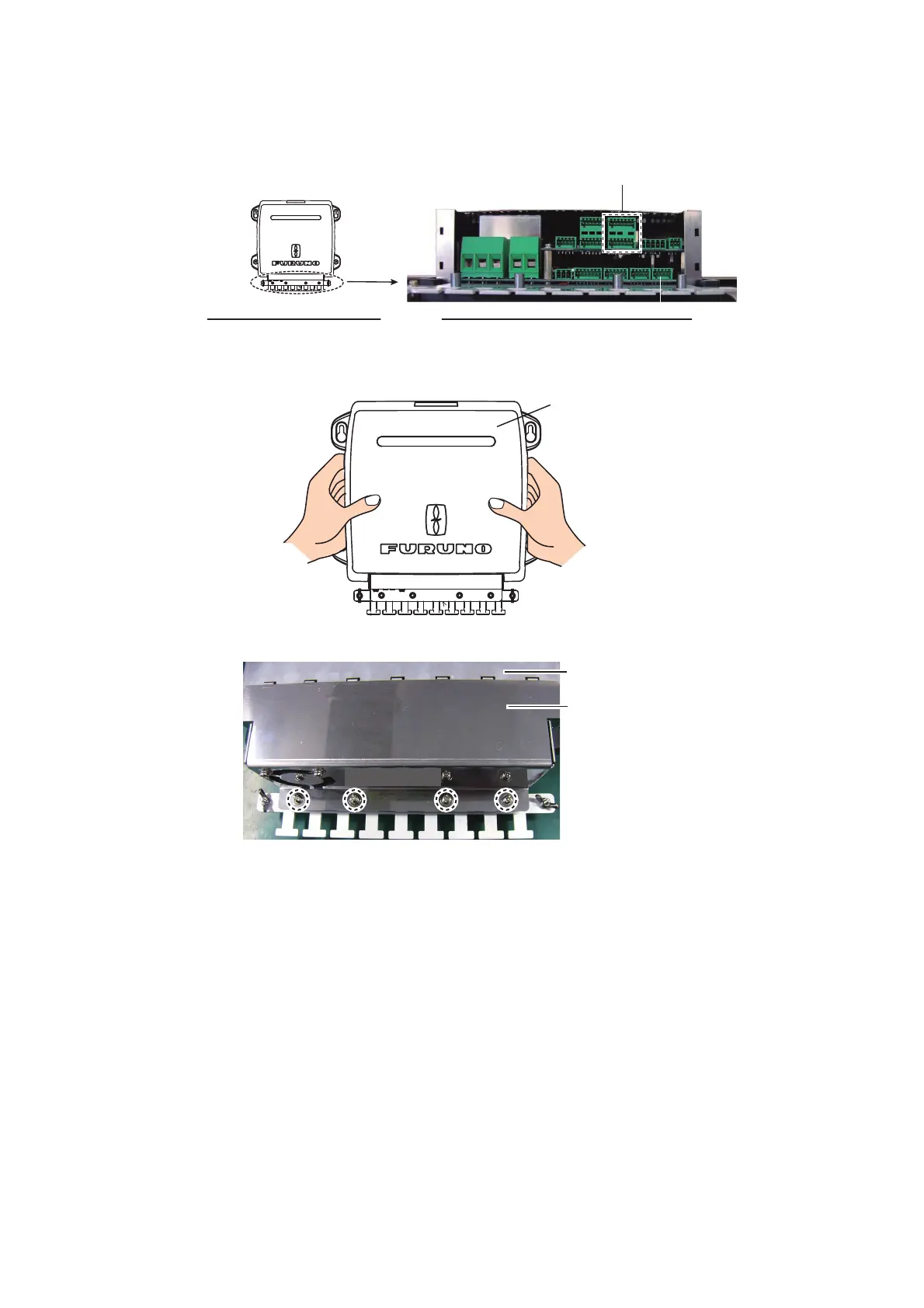

6.2.2 Connection with the processor unit
Do as follows to connect the control unit to the TB8 port on the processor unit.
1. Remove the outside cover of the processor unit; hold the right and left sides of the
cover and pull the cover outward.
2. Remove the four screws circled below.
3. Remove the cable clamp/fan assy. from the shield cover.
Note: When removing the cable clamp/fan assy., be careful not to apply tension
to the fan connector.
TB8 port
Cable entrance of the processor unit
Processor unit FAP-7002
Outside cover
Shield cover
Cable clamp/fan assy.

Furuno NAVpilot-711C Specifications

General

Brand	Furuno
Model	NAVpilot-711C
Category	Autopilot System
Language	English
