1. OPERATIONAL OVERVIEW
1-7
1.5.2 Numerical display
The numerical display provides relevant navigation data according to the steering
mode, on three screens.
The table below shows the layout and data provided with each steering mode.
Steering mode Layout Display data
STBY mode Type-1 A: Ship’s heading
AUTO mode A: Set course
NAV mode
([NAV mode] = [Course])
Type-2 B: Waypoint name
C: Waypoint course
D: ETA (Estimated time of arrival)
NAV mode
([NAV mode] = [XTE(Precision)] or
[XTE(Economy)])
B: Waypoint name
C: Cross-track error
D: ETA (Estimated time of arrival)
WIND mode Type-3 E: Set wind angle
F: Wind speed
G: Wind angle

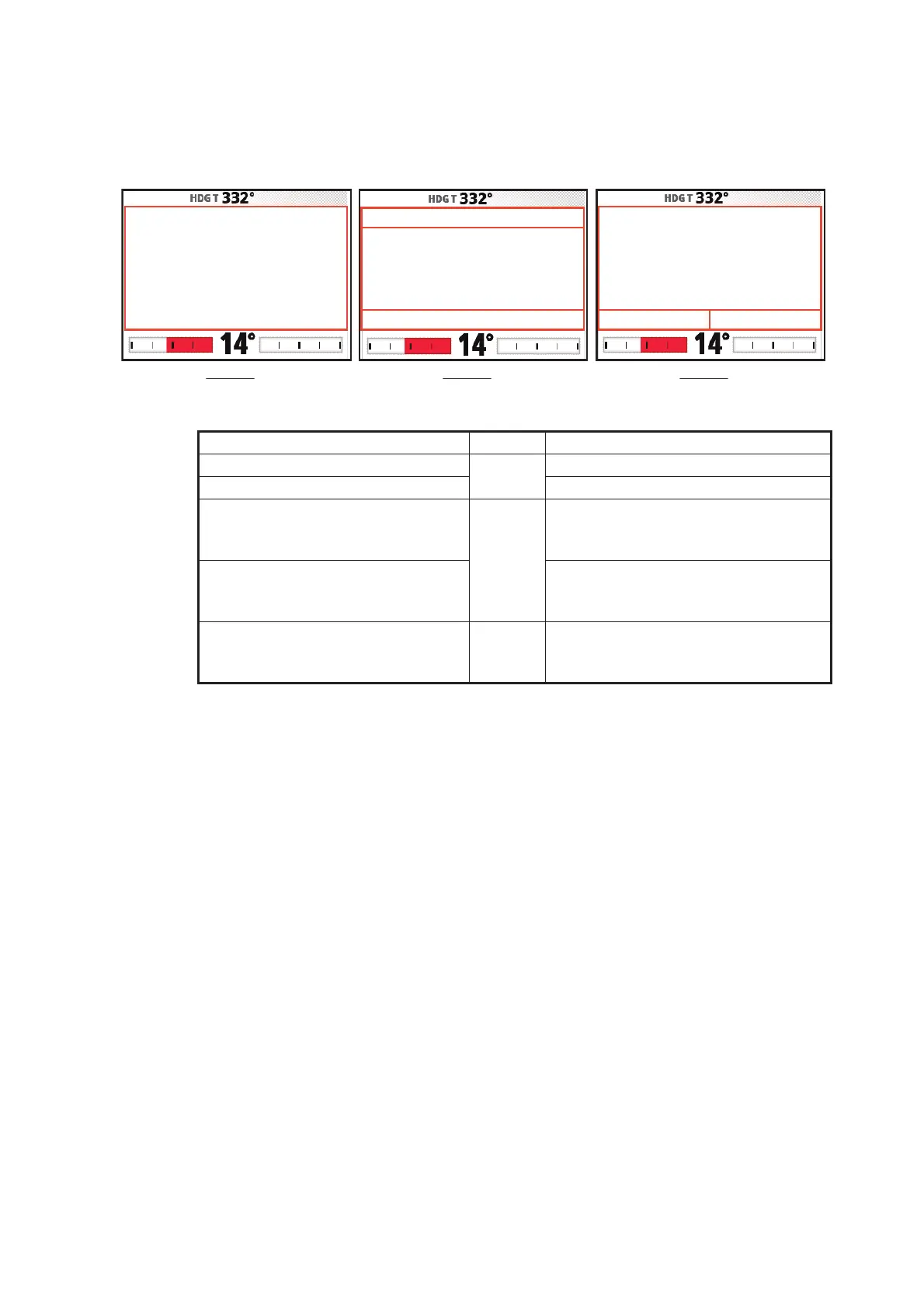

Type-1 Type-2 Type-3
