1. OPERATIONAL OVERVIEW
1-6

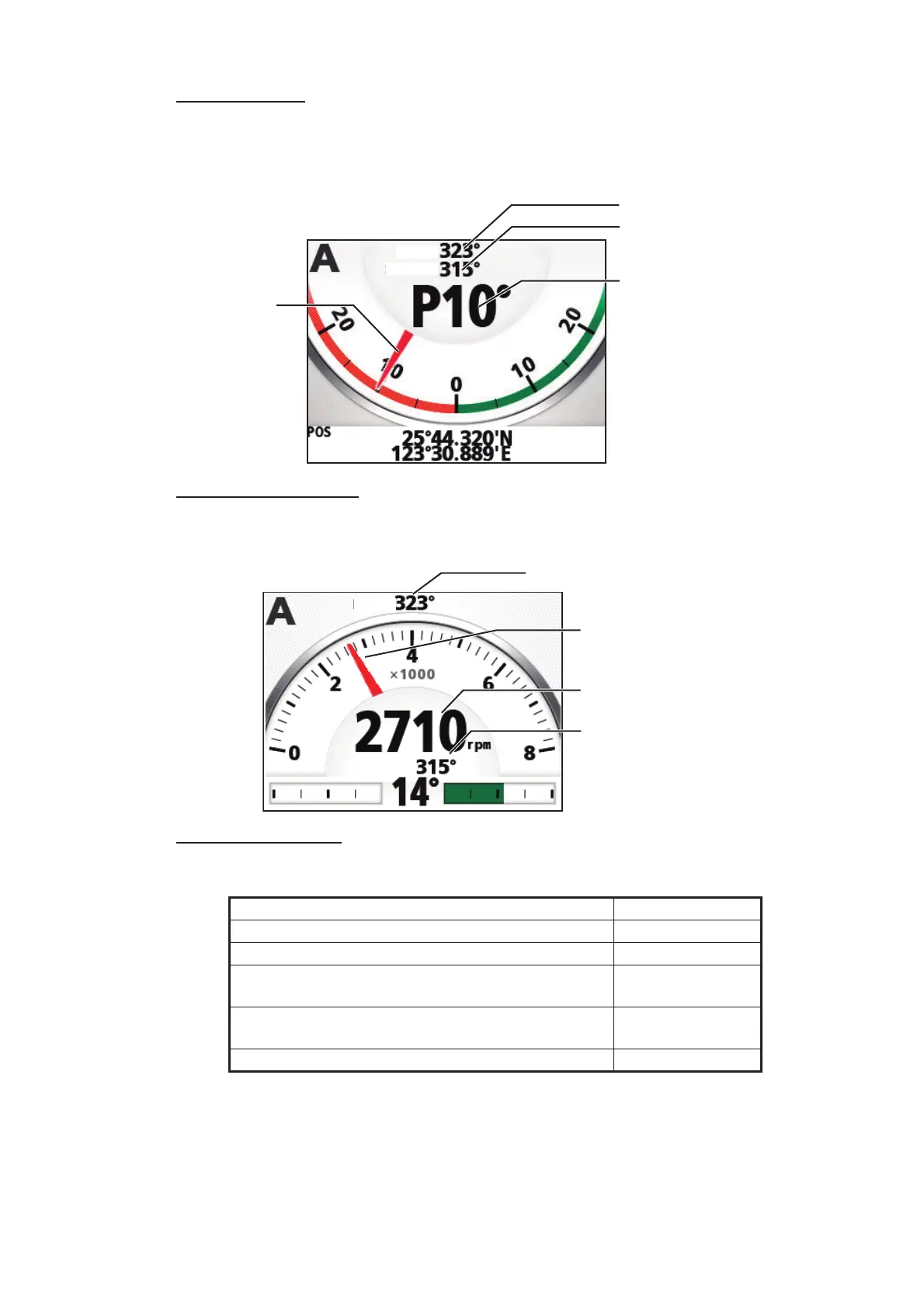

Rudder display
The rudder display shows analog and digital rudder angle.
Note: Not available with Fantum Feedback
™
.
Engine speed display
The engine speed display shows the engine revolution. Requires engine speed data.
Steering mode data
The table below shows the steering mode data that appears on the graphic display.
Steering mode Display
STBY mode Ship’s heading
AUTO mode Set course
NAV mode
[NAV mode] = [Course]
Waypoint course
NAV mode
[NAV mode] = [XTE(Precision)] or [XTE(Economy)]
Cross-track error
WIND mode Set wind angle
SETCSE
HDG T
Rudder angle/direction
P: to “port”
S: to “starboard”
Rudder angle
(Analog)
Ship's heading
Steering mode data
(See page 1-6.)
Ship's heading
Engine speed
(Analog)
Steering mode data
(See page 1-6.)
Engine speed
SETCSESETCSE
HDG THDG T
