1. OPERATIONAL OVERVIEW
1-4
1.5 How to Select a Display

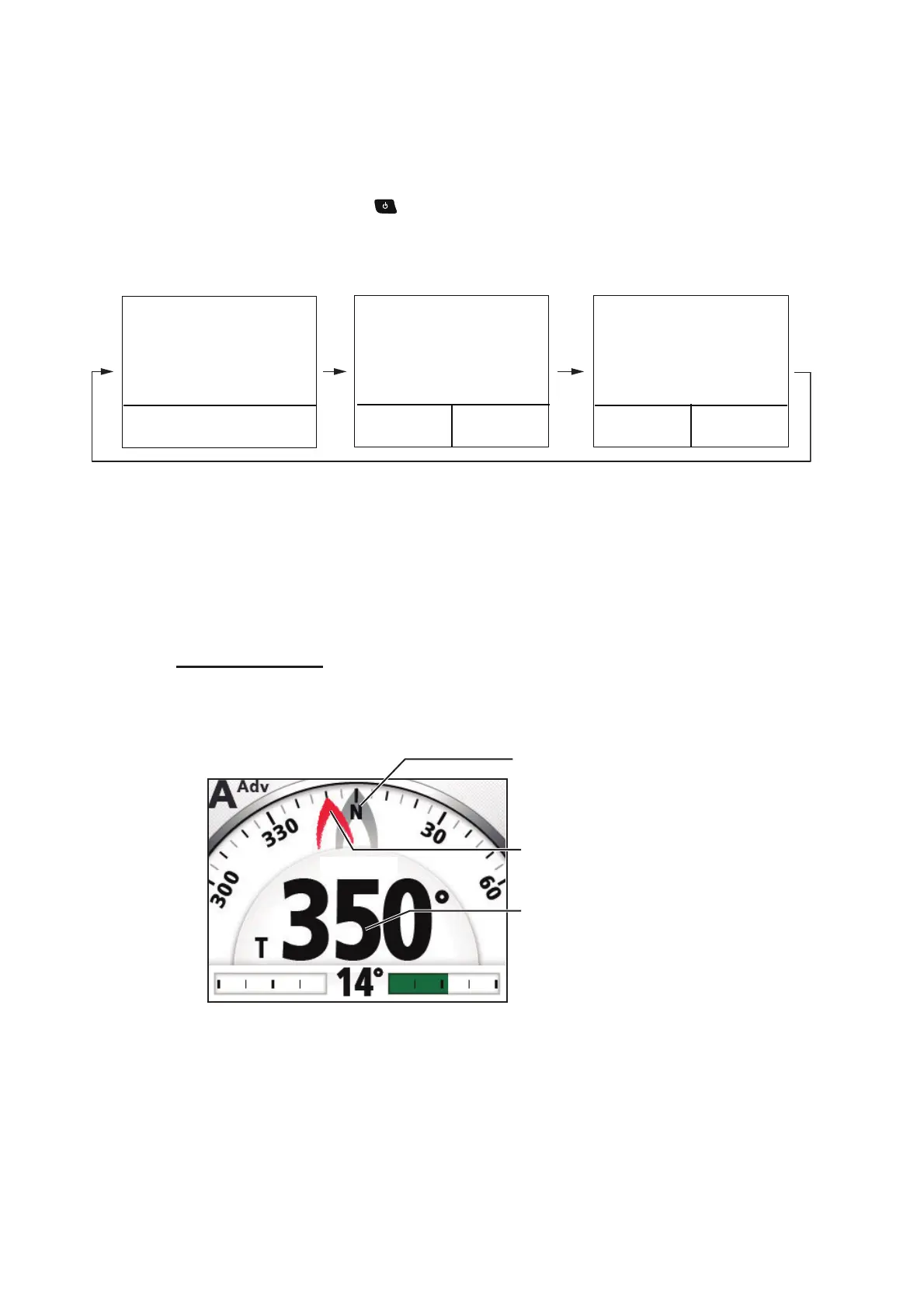

There are three displays to select from each steering mode.
To select a display, do the following operation according to the steering mode.
STBY mode: Press the key
AUTO and WIND mode: Press the AUTO key.
NAV mode: Press the NAV key.
Note: Page layout of the page 3 depends on setting of [Data Box Format].
1.5.1 Graphic displays
There are five types of the graphic displays: compass, highway, wind, rudder, engine
speed display.
Compass display
The compass display show ship’s heading data. The compass rotates to keep the
ship’s heading (gray pointer) at the top of the display. Requires heading data.
㪲㪉㪴
㪲㪊㪴
㪲㪈㪴
Graphic
or
Numerical display
: Page no. appears when selecting display.
Graphic
or
Numerical display
Graphic
or
Numerical display
Data box
Data box
Data box
Analog indicator
Analog
indicator
