60
4.5.2.3.6 Configure Picture Overlay
You can enable this function if you need to display picture information on the video image.
Text overlay and picture overlay cannot work at the same time.
Step 1 Select Setting > Camera > Video > Overlay > Picture Overlay.
The Picture Overlay interface is displayed. See Figure 4-55.

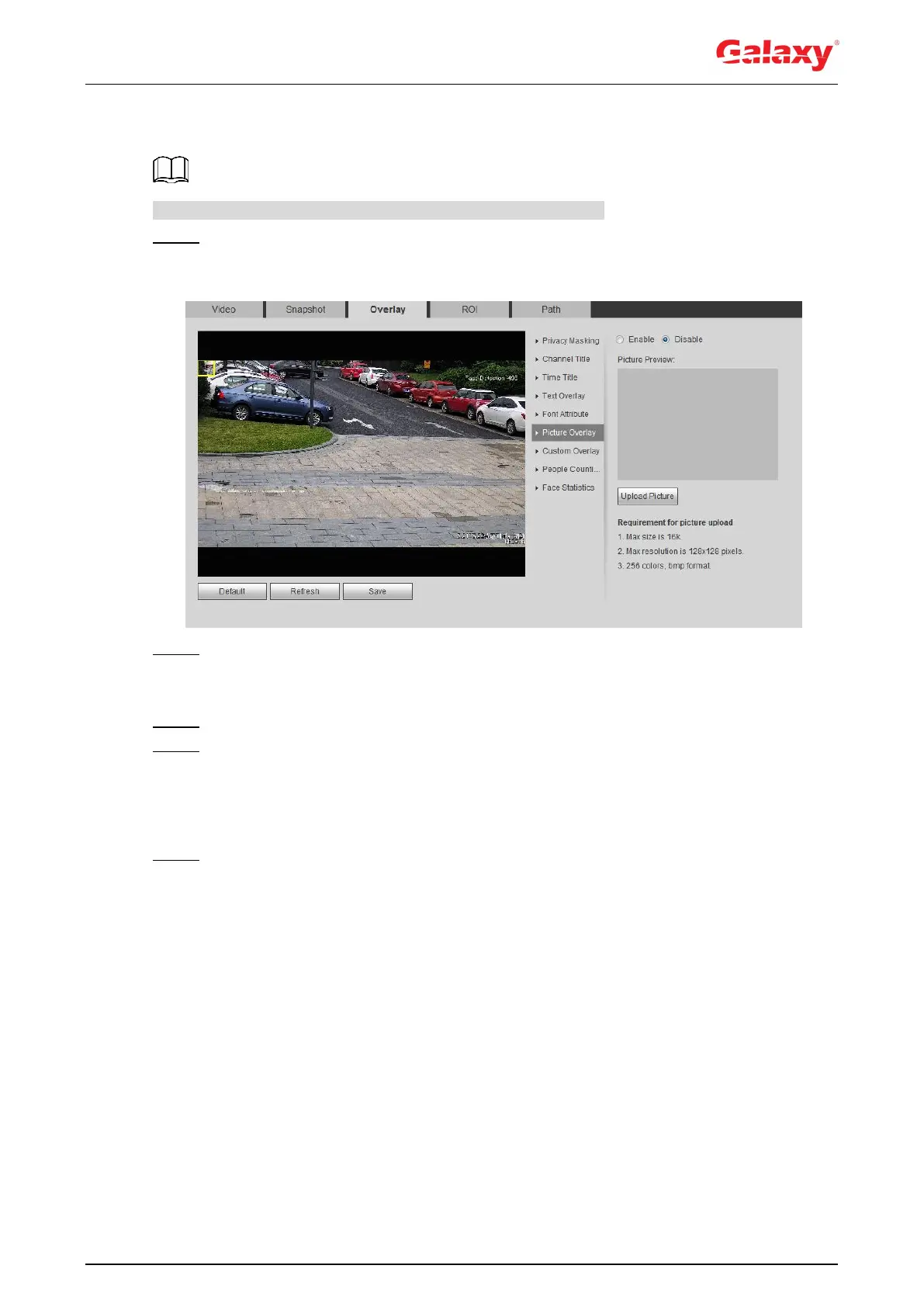

Figure 4-55 Picture overlay
Step 2 Select the Enable check box, click Upload Picture, and then select the picture to be
overlaid.
The picture is displayed on the video image.
Step 3 Move the overlaid picture to the position you want in the image.
Step 4 Click Save.
4.5.2.3.7 Configure Custom Overlay
You can enable this function if you need to display custom information on the video image.
Step 1 Select Setting > Camera > Video > Overlay > Custom Overlay.
The Custom Overlay interface is displayed. See Figure 4-56.
