63

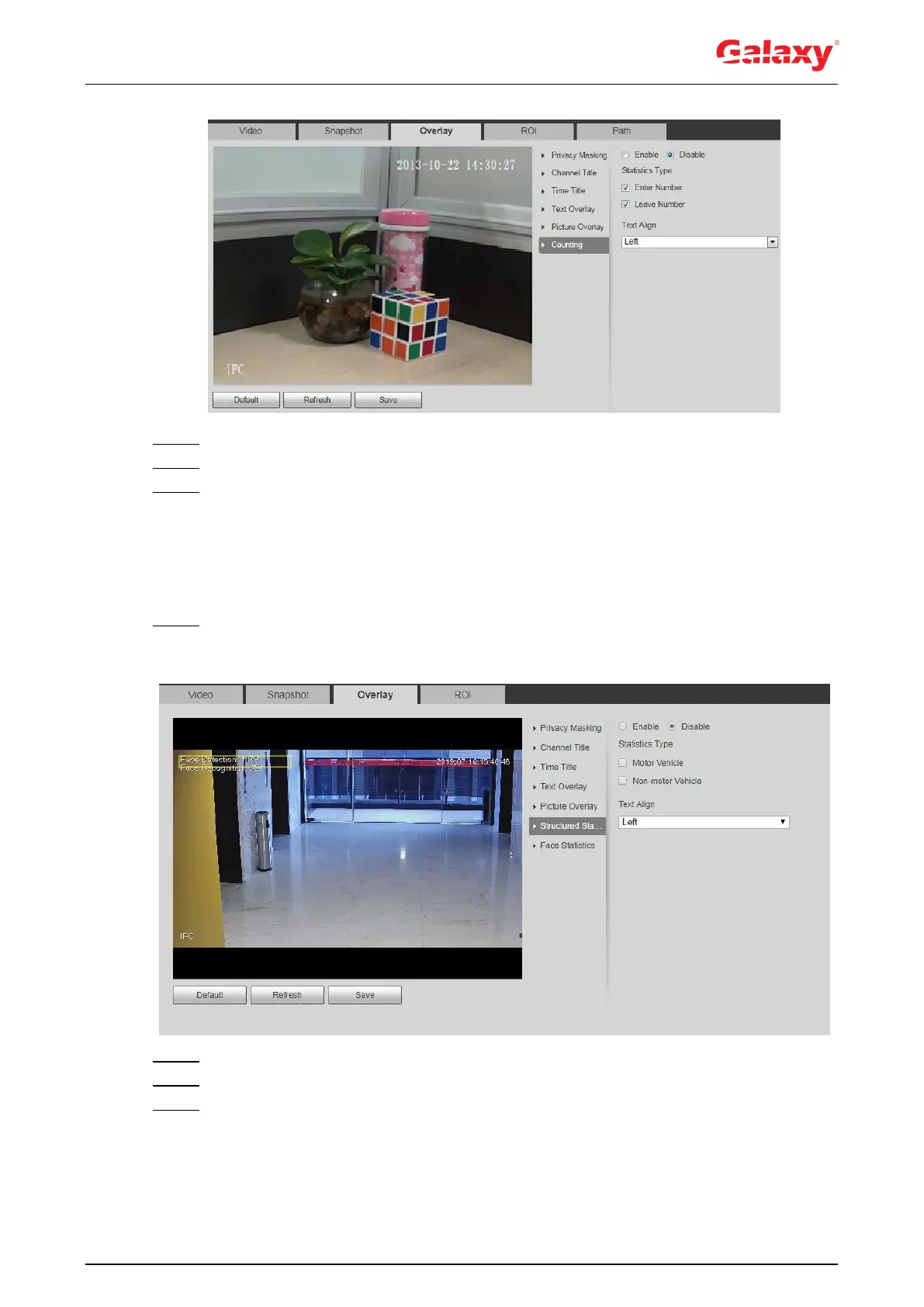

Figure 4-58 Counting
Step 2 Select the Enable check box, and then configure counting method and alignment.
Step 3 Move the counting box to the position you want in the image.
Step 4 Click Save.
4.5.2.3.10 Configuring Structured Statistics
The image displays structured statistics. When the overlay function enabled during intelligent
rules configuration, this function is enabled simultaneously.
Step 1 Select Setting > Camera > Video > Overlay > Structured Statistics.
The Structured Statistics interface is displayed. See Figure 4-59.
Figure 4-59 Structured statistics
Step 2 Select the Enable check box, select the statistics type, and then select text align.
Step 3 Move the structured statistics box to the position you want in the image.
Step 4 Click Save.
