4.5.2.3.11 Configuring Ranging
Configure camera height and the display time of overlay information. Click any point on the
ground that the pole is installed on the image, and the overlay information between camera and
the selected point is displayed.
Step 1 Select Setting > Camera > Video > Overlay > Ranging.
The Ranging interface is displayed. See Figure 4-60.

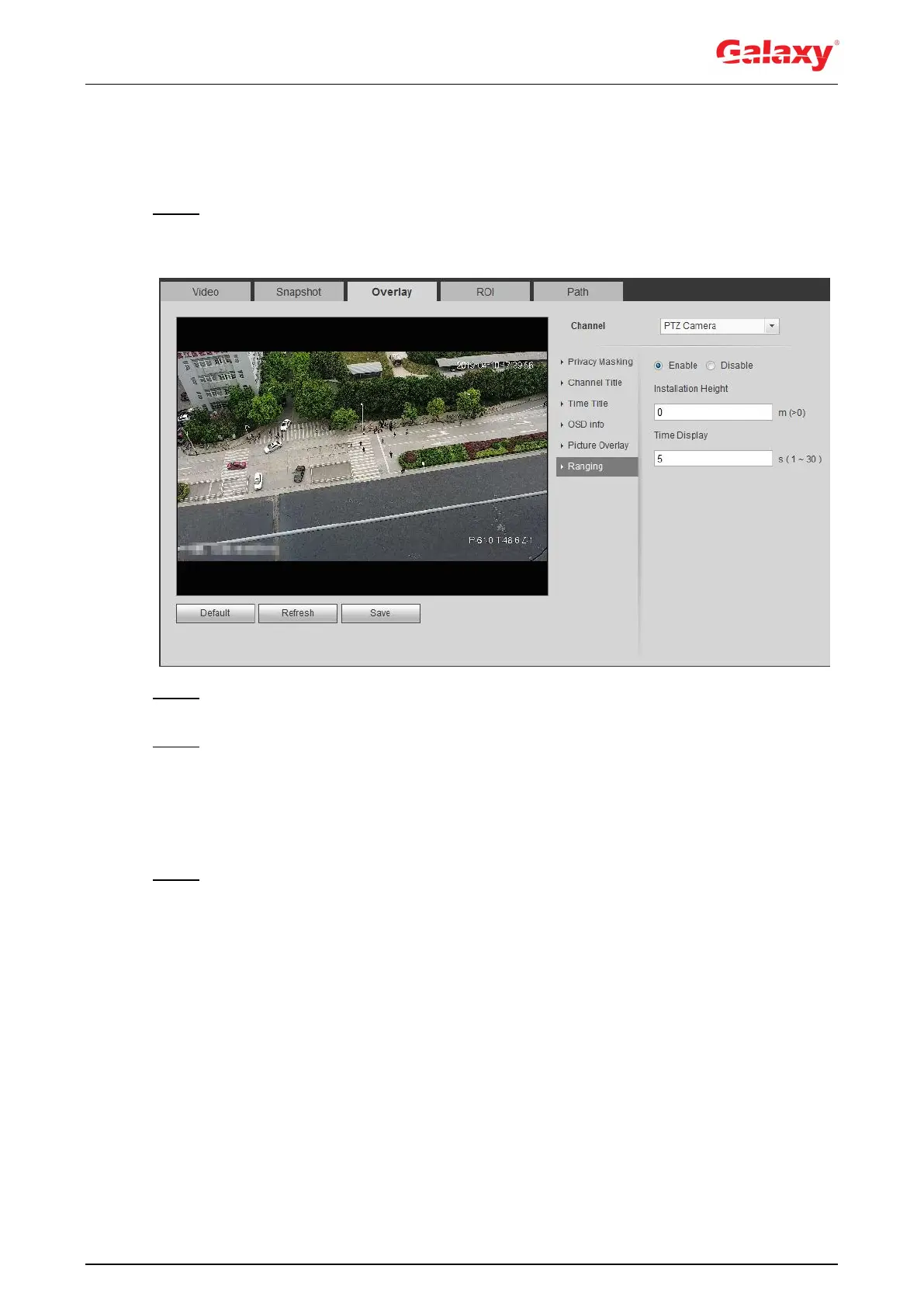

Figure 4-60 Ranging
Step 2 Select the Enable check box, and then set the installation height and time display.
Time display: The display time of the ranging information on live image.
Step 3 Click Save.
4.5.2.3.12 Configuring ANPR
The image displays ANPR statistics information. When the overlay function enabled during
intelligent rules configuration, this function is enabled simultaneously.
Step 1 Select Setting > Camera > Video > Overlay > ANPR.
The ANPR interface is displayed. See Figure 4-61.
