65

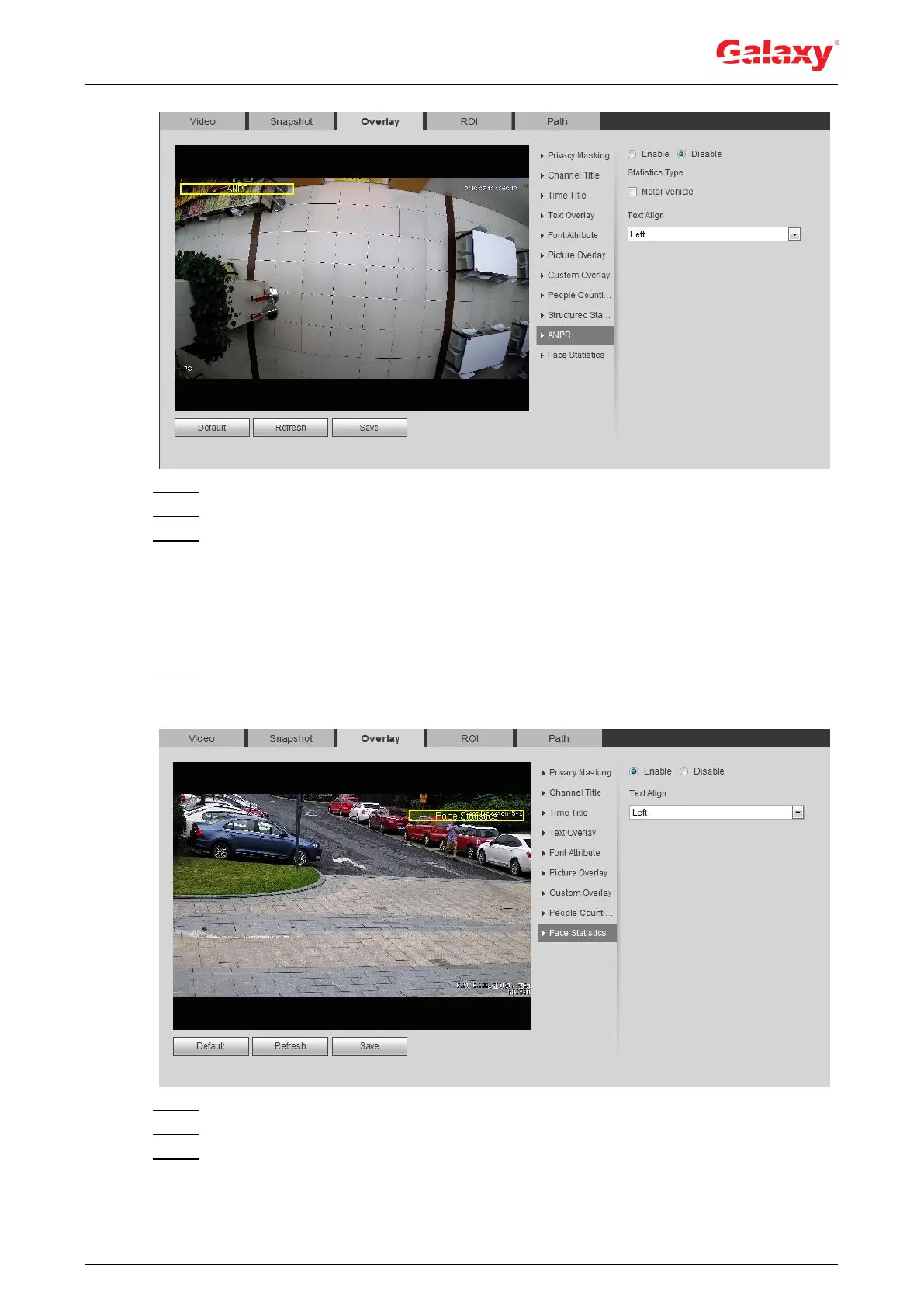

Figure 4-61 ANPR
Step 2 Select the Enable check box, select the statistics type, and then select text align.
Step 3 Move the ANPR box to the position you want in the image.
Step 4 Click Save.
4.5.2.3.13 Configuring Face Statistics
The image displays face statistics information. When the overlay function enabled during
intelligent rules configuration, this function is enabled simultaneously.
Step 1 Select Setting > Camera > Video > Overlay > Face Statistics.
The Face Statistics interface is displayed. See Figure 4-62.
Figure 4-62 Face statistics
Step 2 Select the Enable check box, and select the text align.
Step 3 Move the structured statistics box to the position you want in the image.
Step 4 Click Save.
