INSTALLATION
36
PULSE Installaon, Commissioning and Servicing Manual - Revision 19
Procedure

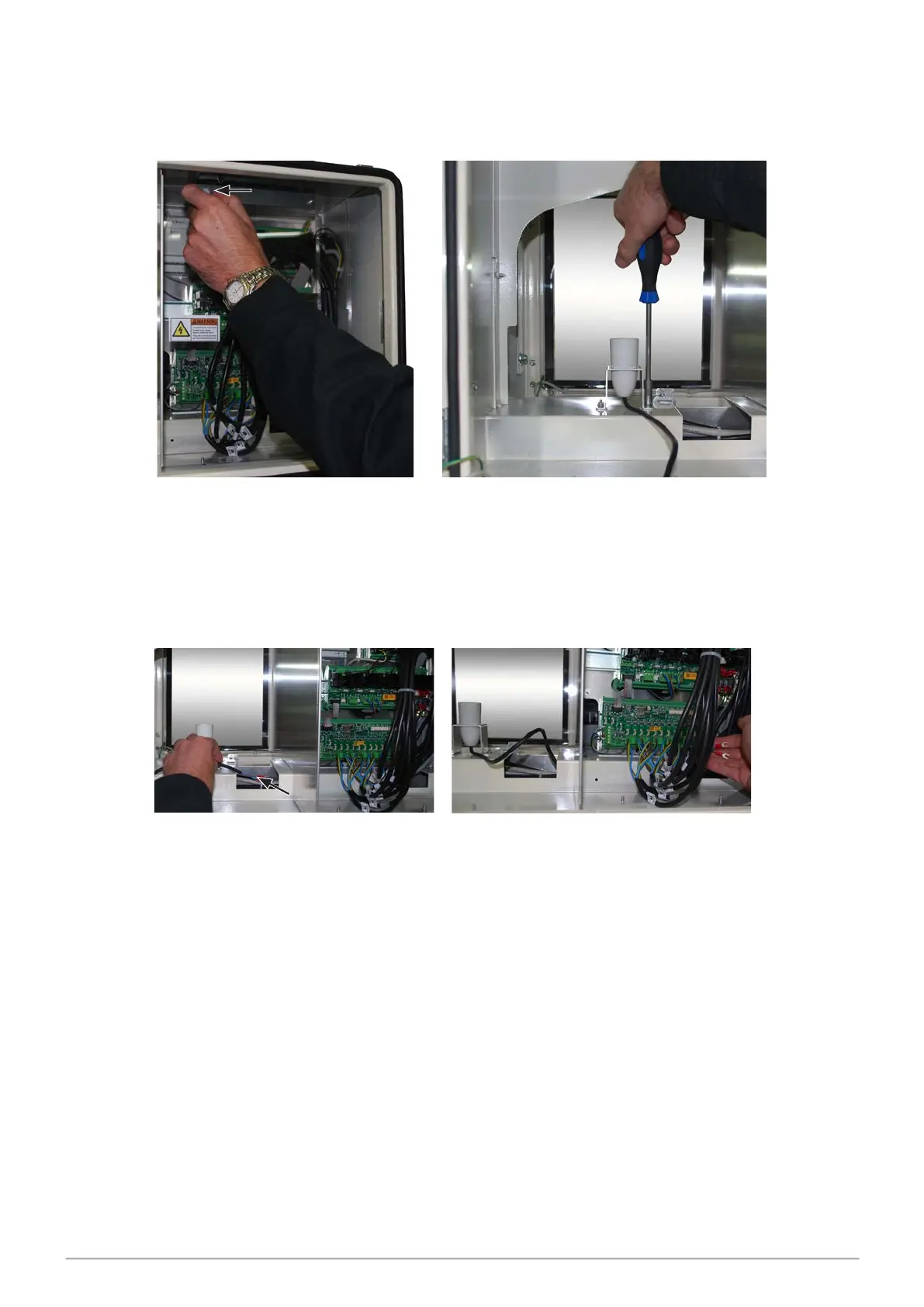

The following steps describe how to install the head lighting
Dome nutDome nut
1. At the rear of the head remove
the shield covering the gear
plate by rst removing the
dome nuts on the top of the
shield.
2. Fit the light mounng bracket to the 2
studs in the middle of the head. Secure
with 2 M4 nuts.
Cable channelCable channel
3. Run the lighng assembly cable through the cable channel and up to the
Motor Drive Module.
