INSTALLATION
37
PULSE Installaon, Commissioning and Servicing Manual - Revision 19
LiveLive
NeutralNeutral

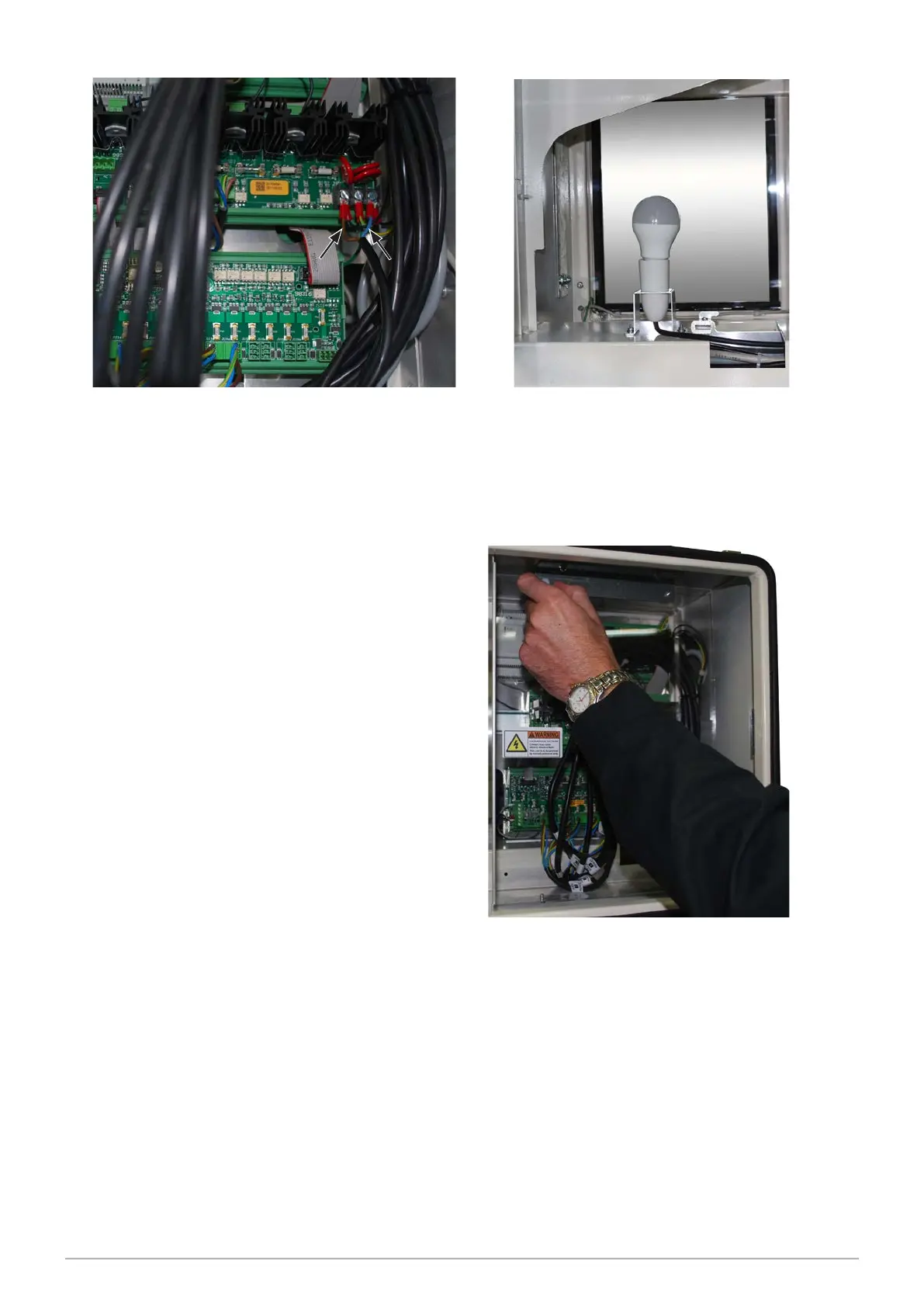

4. Connect the Ulux Crimp Lugs to the terminal
on the Motor Drive Board. Brown cable
on the live terminal and blue cable on the
neutral terminal.
5. Fit the light bulb to the lamp
holder and conduct an electrical
safety test as required.
6. Replace the shield over the gear plate and
re-t the dome nuts.
7. Repower the dispenser and test the correct
operaon of the head lighng.
