10 Power+ Technical Guide
2.2 UPS SYSTEM CONTROLLER
The POWER+ system controller is designed primarily for monitoring, diagnostics and
communications.
Some other useful features include temperature compensation of the battery voltage.
The POWER+ can work without the system controller but with reduced functionality.
Figure 2-8 shows the system controller block diagram. The core of the controller is a powerful
embedded micro-controller, surrounded by many peripherals (analog, digital, communication).
The controller front panel is shown in
Figure 2-7.

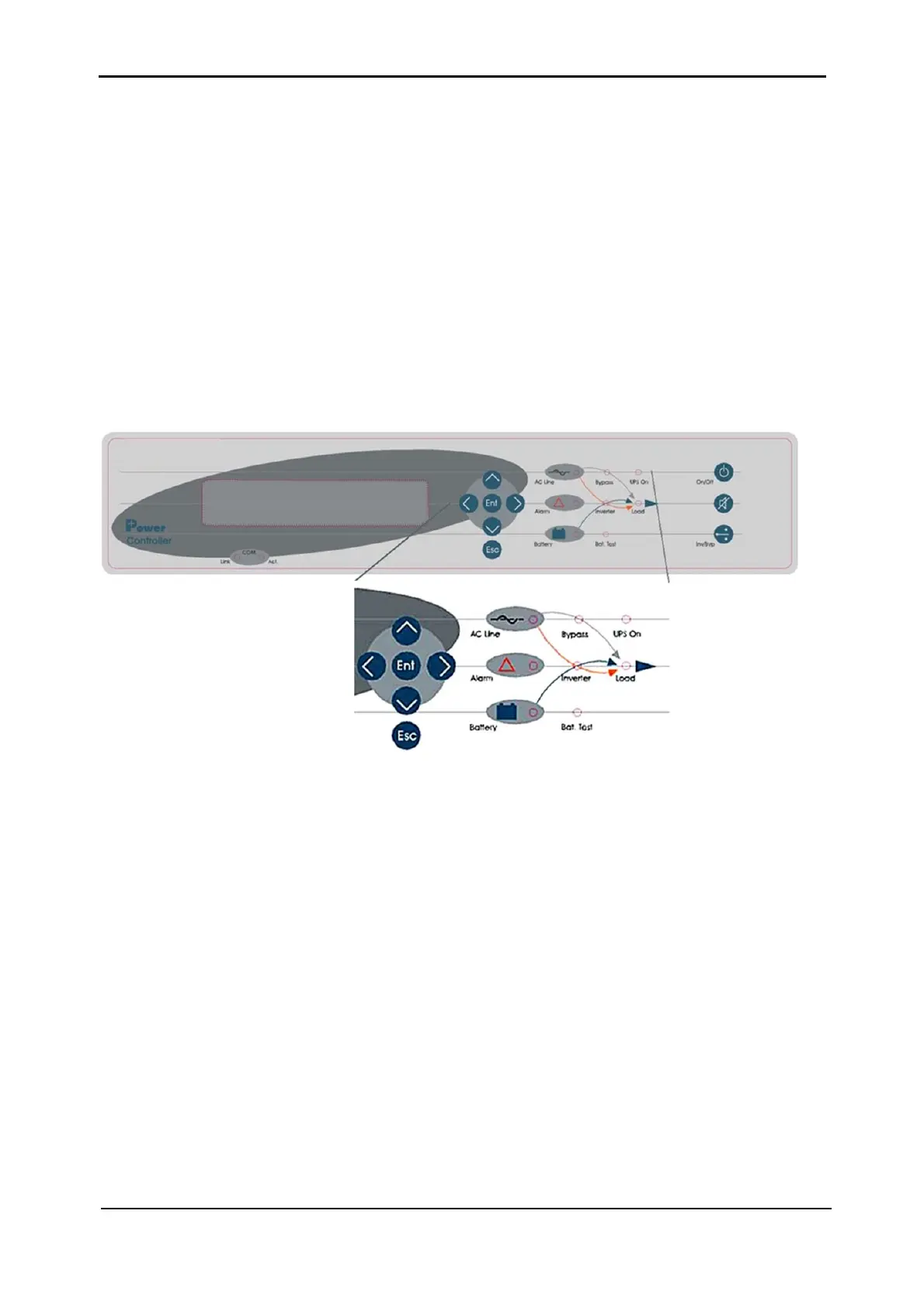

Figure 2-7: System controller - Front panel
