3. SYSTEM INTERCONNECTION
The POWER+ system comprises UPS Modules, a System Controller, Static Switch and
distribution elements such as AC, DC and fuses. These components are assembled as shown
in
Figure 3-1.
A major advantage of the POWER+ is its upgradability simply by adding UPS modules and
shelves as required.
The system controller occupies the same space as the UPS module and although not critical, is
most often mounted at the top shelf for convenience. This permits easier viewing of the display.
The static switch module however, is always mounted at the bottom of the system (see
Figure
3-1).

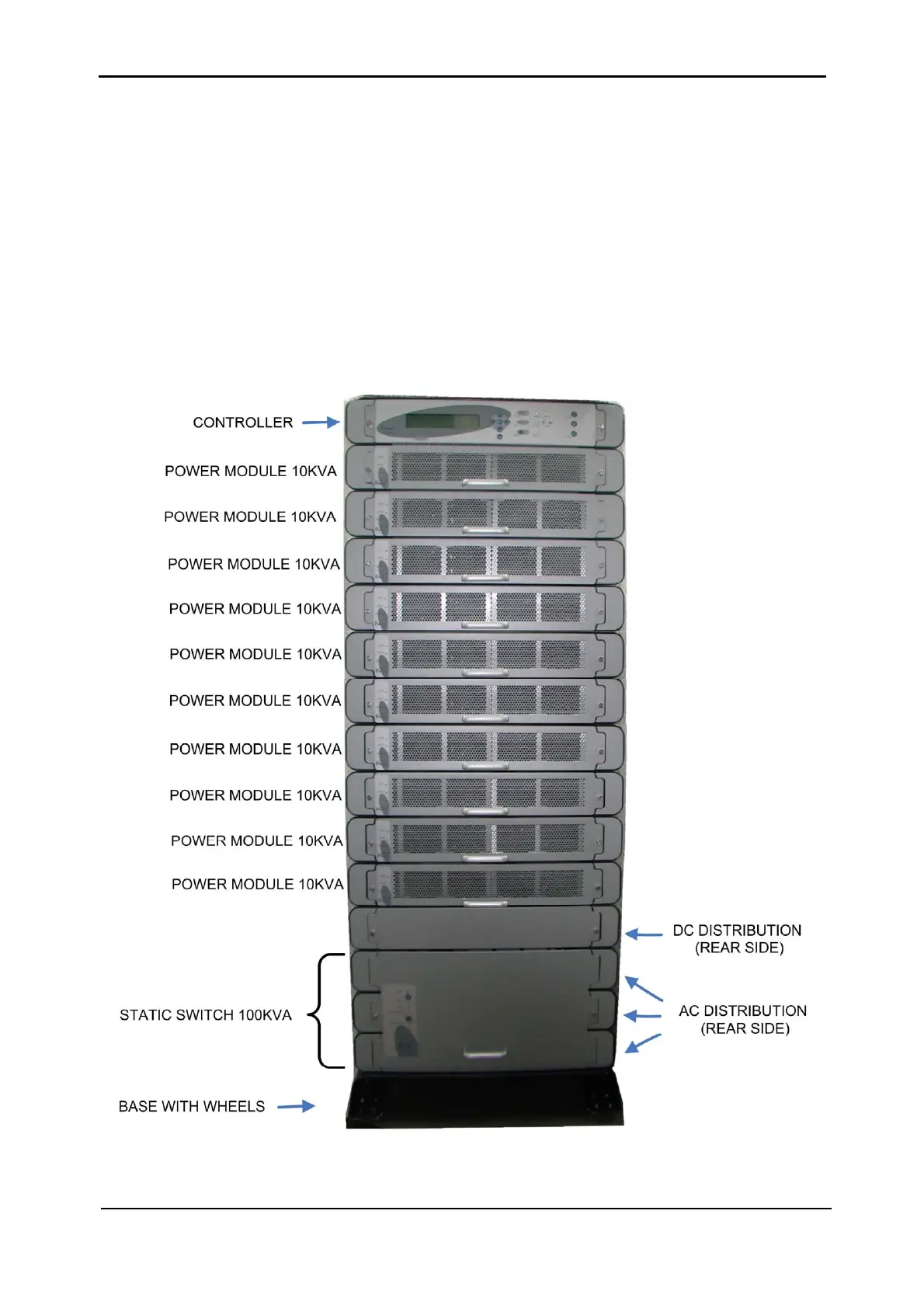

Figure 3-1: Power+ system - Modular structure
