Gamatronic POWER PLUS - DC Fuses; Figure 3-13: DC Fuses on Front Side of DC Dist. Panel (50 KVA Model); Figure 3-14: DC Fuses on Front of DC Dist. Panel (100 KVA Model)

Gamatronic Electronic Industries Ltd.
28 Power+ Technical Guide
3.2.1 DC FUSES
All DC fuses are located on the opposite side (the front side) of the DC distribution panel. There
are two fuses for each power module and for the controller – one for the positive line and one
for the negative line.

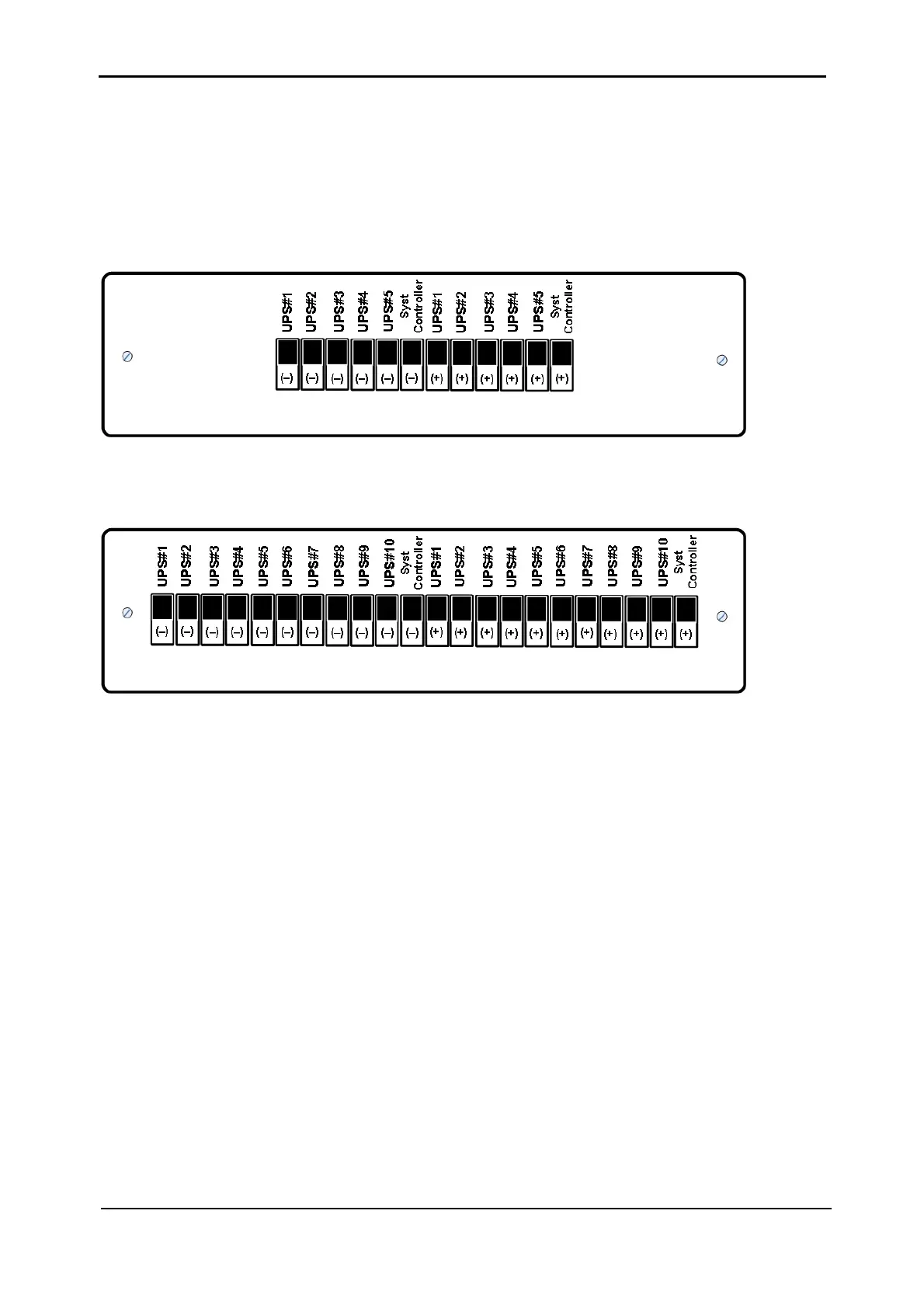

Figure 3-13 and Figure 3-14 show the assignments.
Figure 3-13: DC fuses on front side of DC dist. panel (50KVA model)
Figure 3-14: DC fuses on front of DC dist. panel (100KVA model)
