4. SYSTEM INSTALLATION
WARNING
RISK OF ELECTRICAL SHOCK OR INJURY!
INSTALLATION MAY BE PERFORMED BY
QUALIFIED TECHNICIAN ONLY!

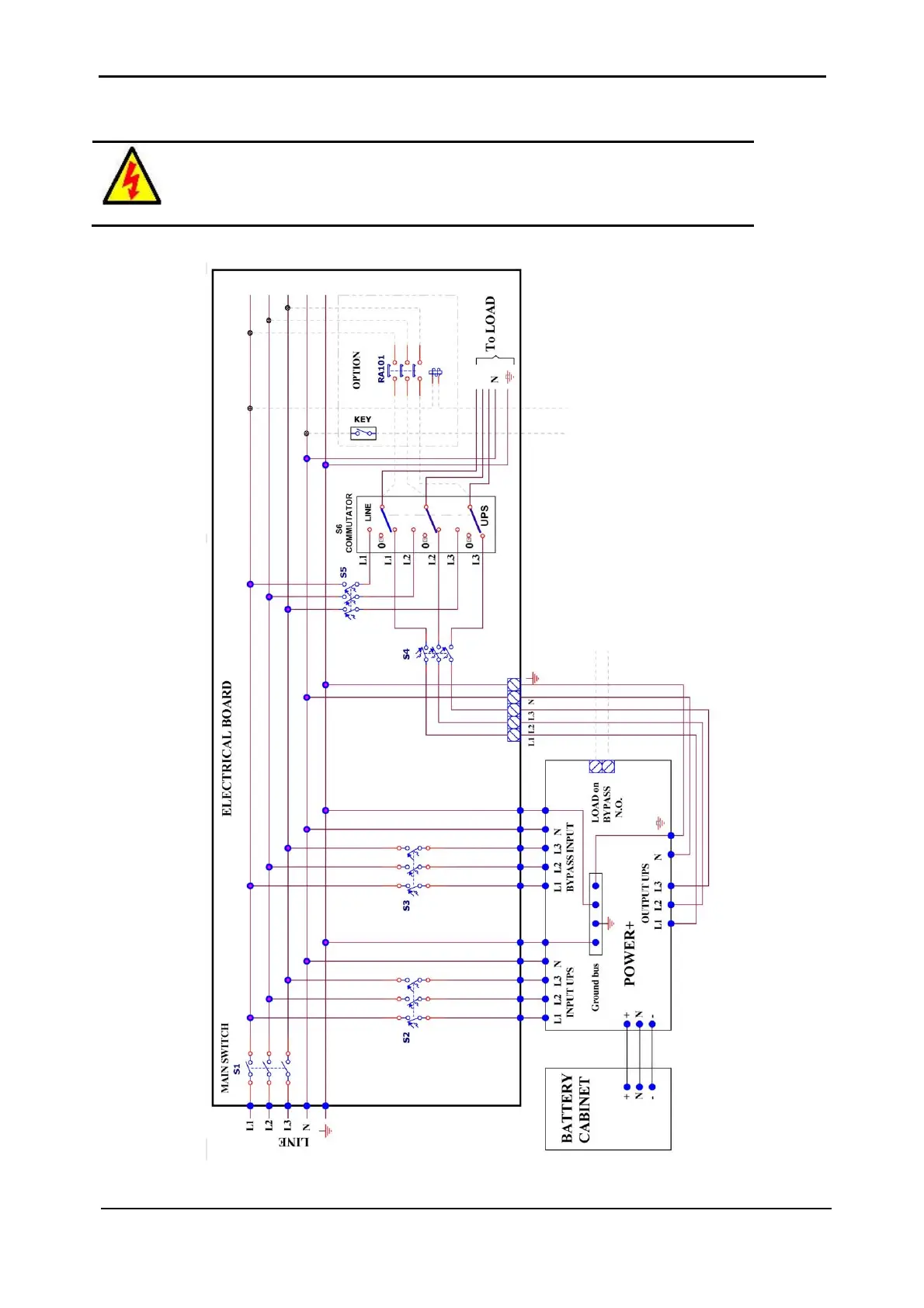

Figure 4-1 illustrates the cabling of the POWER+ system to the mains electricity cabinet.
Figure 4-1: POWER+ system connections
