Gamatronic POWER PLUS - Figure 5-11: LCD Panel - Selection; Figure 5-12: Module Phase Voltages;Currents; Figure 5-13: Battery Voltages, I-Active Current

Gamatronic Electronic Industries Ltd.
60 Power+ Technical Guide

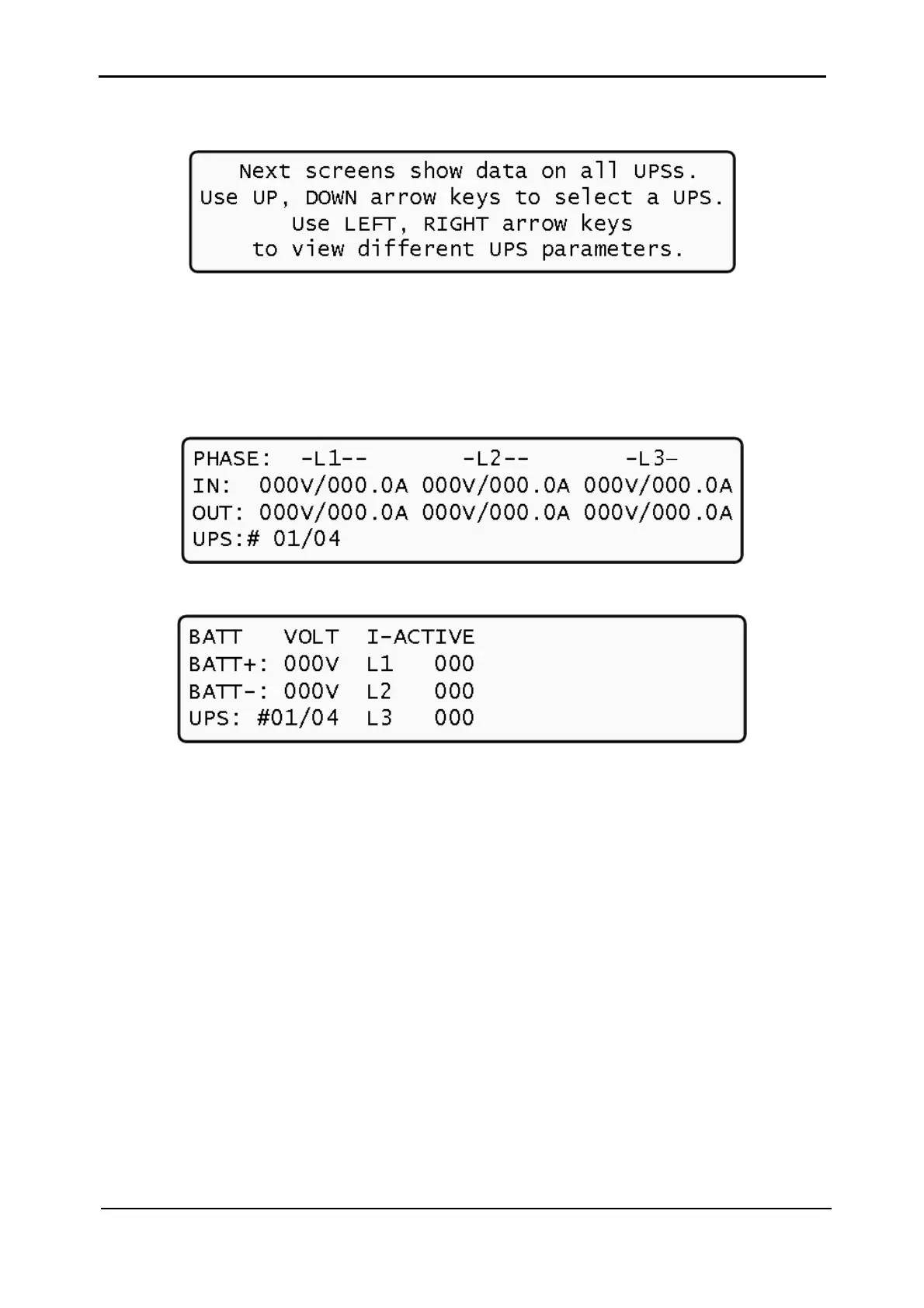

Figure 5-11: LCD Panel – Selection
Figure 5-12 and Figure 5-13 show parameters for the first module of a UPS system with four
modules. (UPS: #01/04).
Figure 5-12: Module phase voltages/currents
Figure 5-13: Battery voltages, I-active current
