Gamatronic Electronic Industries Ltd.
56 Power+ Technical Guide
5.1 SYSTEM INFORMATION DISPLAY

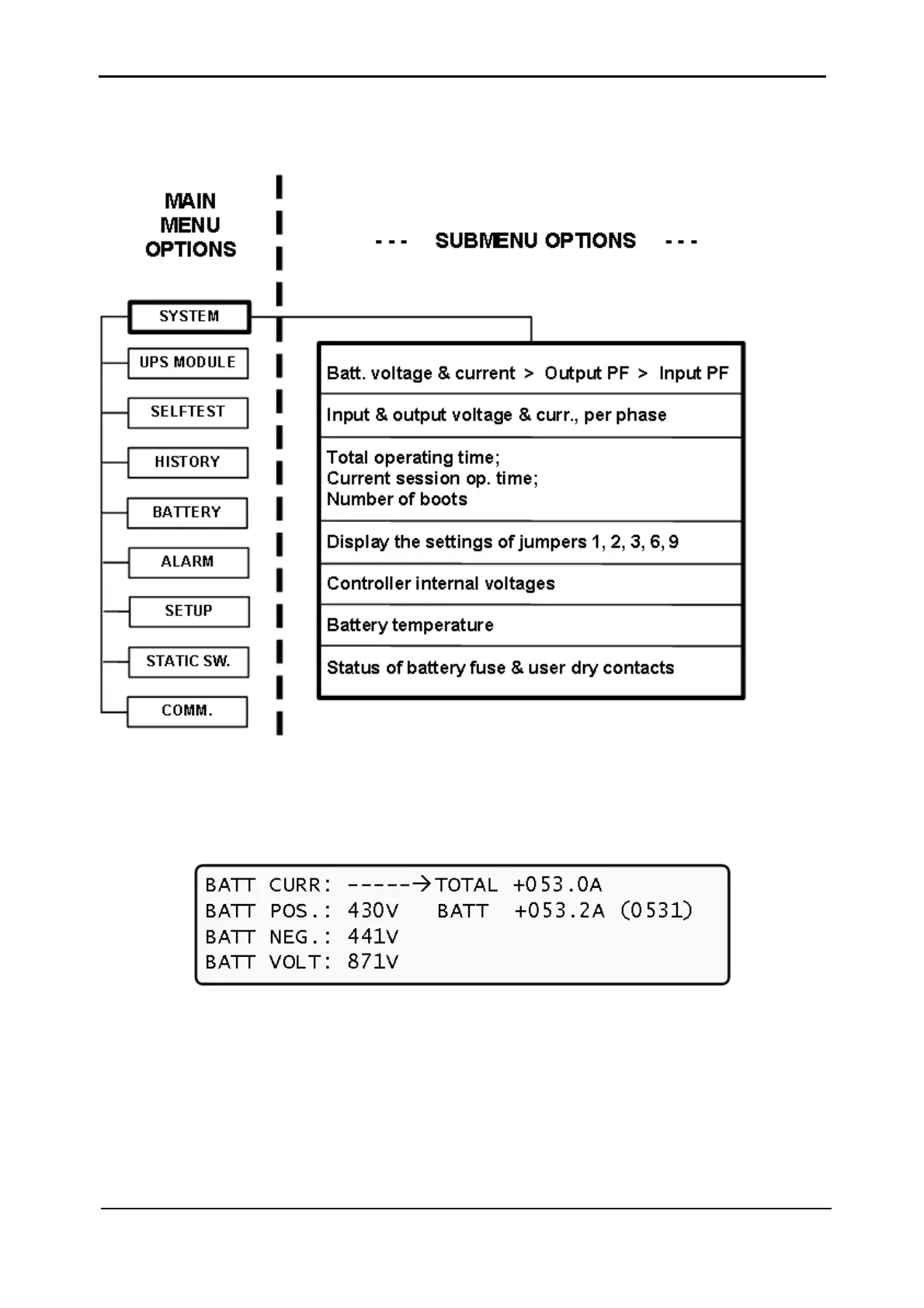

Figure
5-2: Main menu option 1 ("System")
The SYSTEM option on the Main Menu (option 1) shows the DC voltages and current (positive,
negative and summary):
Figure 5-3: System DC voltages
