4.5.3 SYSTEM START-UP
After start-up of the system the POWER+ controller automatically displays the Phase readings
according to the System configuration.
Table 4-1: Power Configuration DIP Switch Settings
Switch Purpose Set left (on) Set right (off)
SW1 Master module
preference
Preferred master
select(not used)
Automatic via
console
SW2 Output power
frequency selection
60 Hz 50Hz
SW3 Output power phase
selection
3-phase Single-phase
Figure

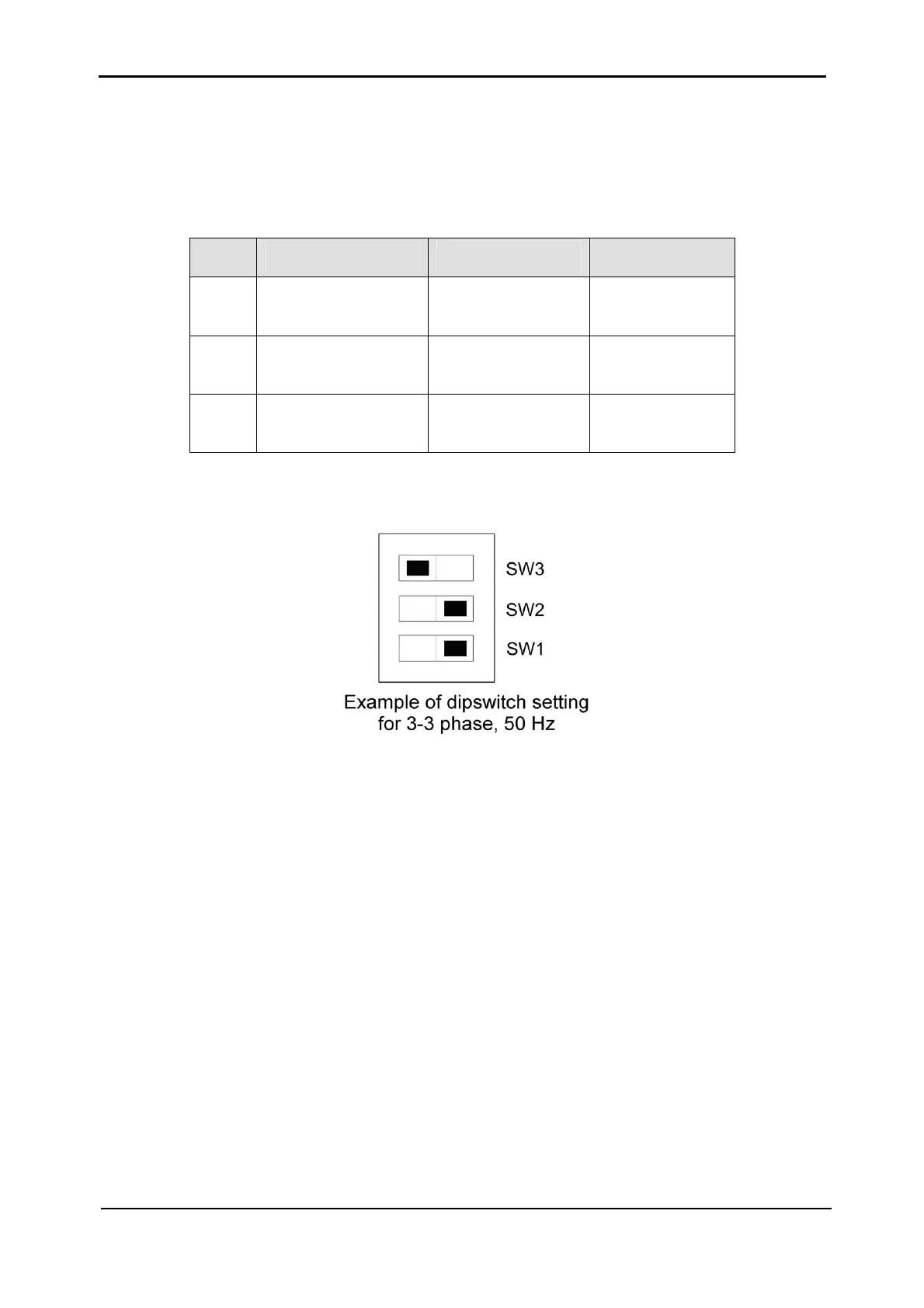

4-8: Example of dip switch setting for 3/3 phase, 50 Hz UPS
