70 Power+ Technical Guide
7. DRY CONTACTS AND ALARM TERMINALS
Dry Contact terminals are located on the right side of the rear of the POWER+ controller
module, as shown in
Figure 7-1, labeled A and B.

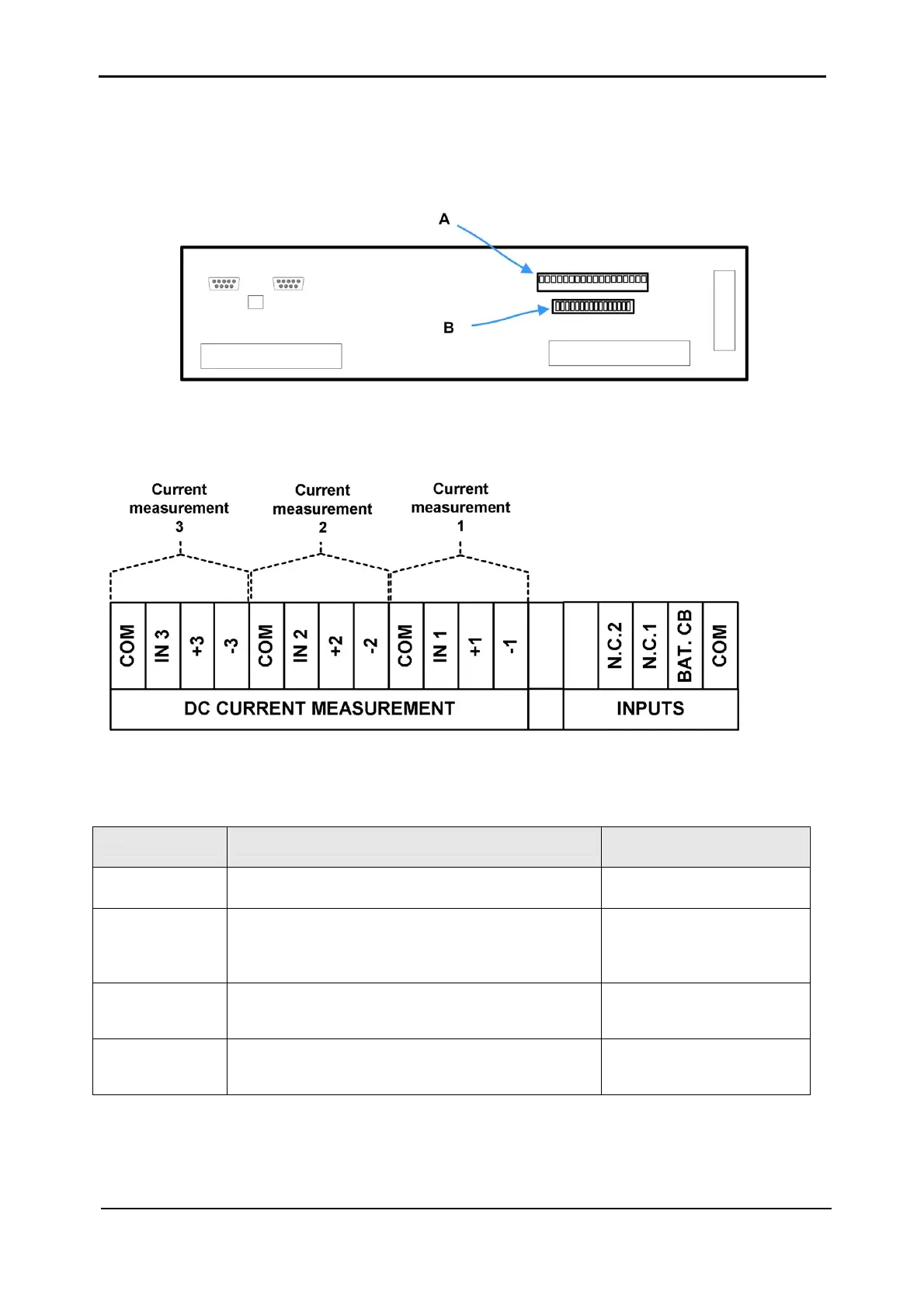

Figure 7-1: Location of dry contacts at rear of POWER+ controller module
Figure 7-2: Dry Contacts “group A” (as per
Figure 7-1)
“INPUTS” DRY CONTACT DESCRIPTION
NAME IN
ALARM DISPLAY
COM Shared contact ---
BAT CB
Auxiliary contact (N.C.) for battery Circuit
Breaker trip indication
BAT CB
N.C.1 USER1 – user assigned dry contact USER-1
N.C.2 USER2 – user assigned dry contact USER-2
