3.5 AC INPUT/OUTPUT MAIN TERMINALS
The main terminals section is critical for system installation. The terminals are used to connect
the AC inputs and AC output to the mains electricity cabinet. The terminals section is illustrated
in
Figure 3-20. The installation procedure is detailed in Section 4.
NOTE:
The Neutral line is common to the input and
output as well as to the battery "0V" point!

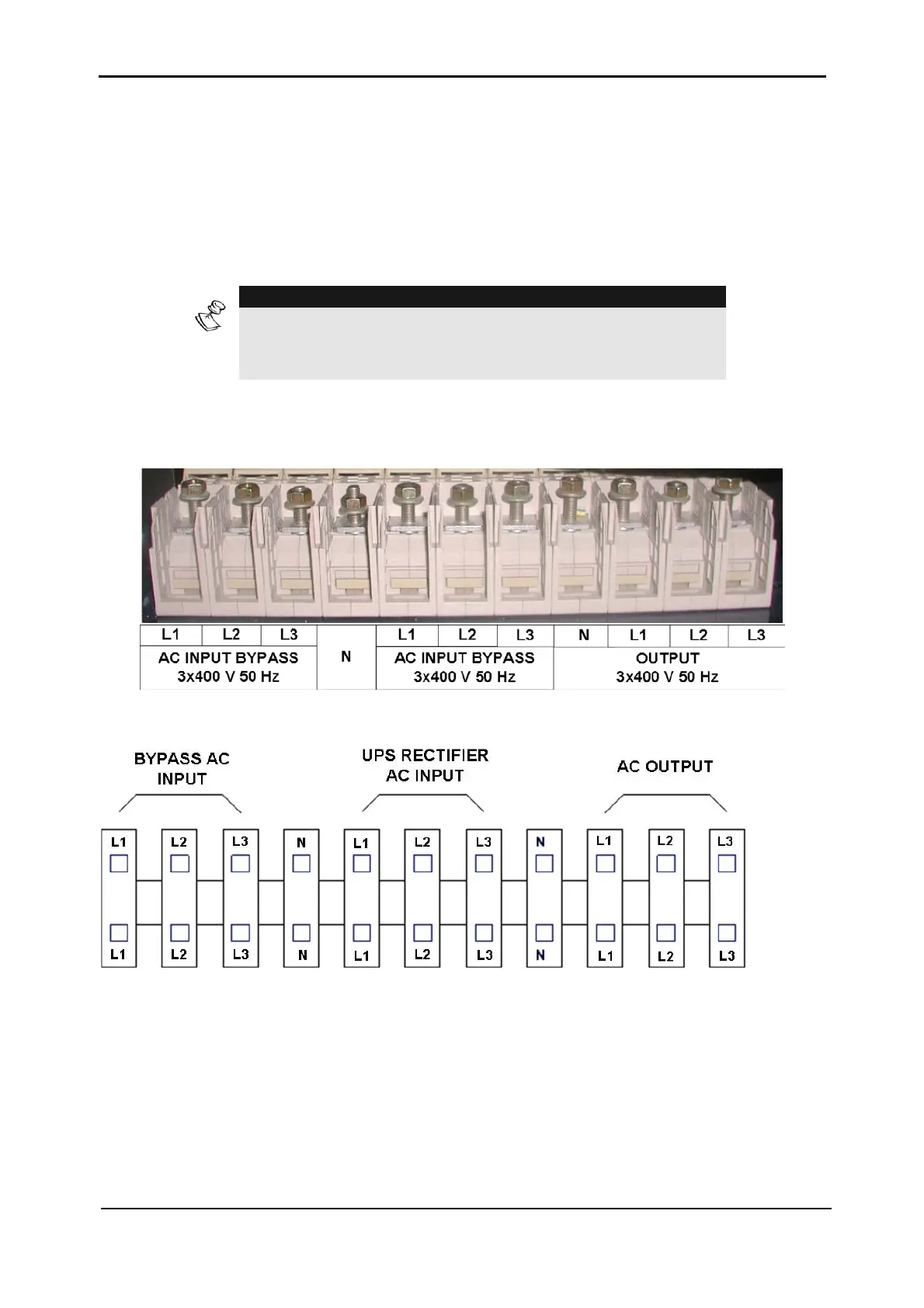

Figure 3-20: Input & output main terminals
