58 Power+ Technical Guide
5.
Press the down arrow again to see the jumper settings on PC714.

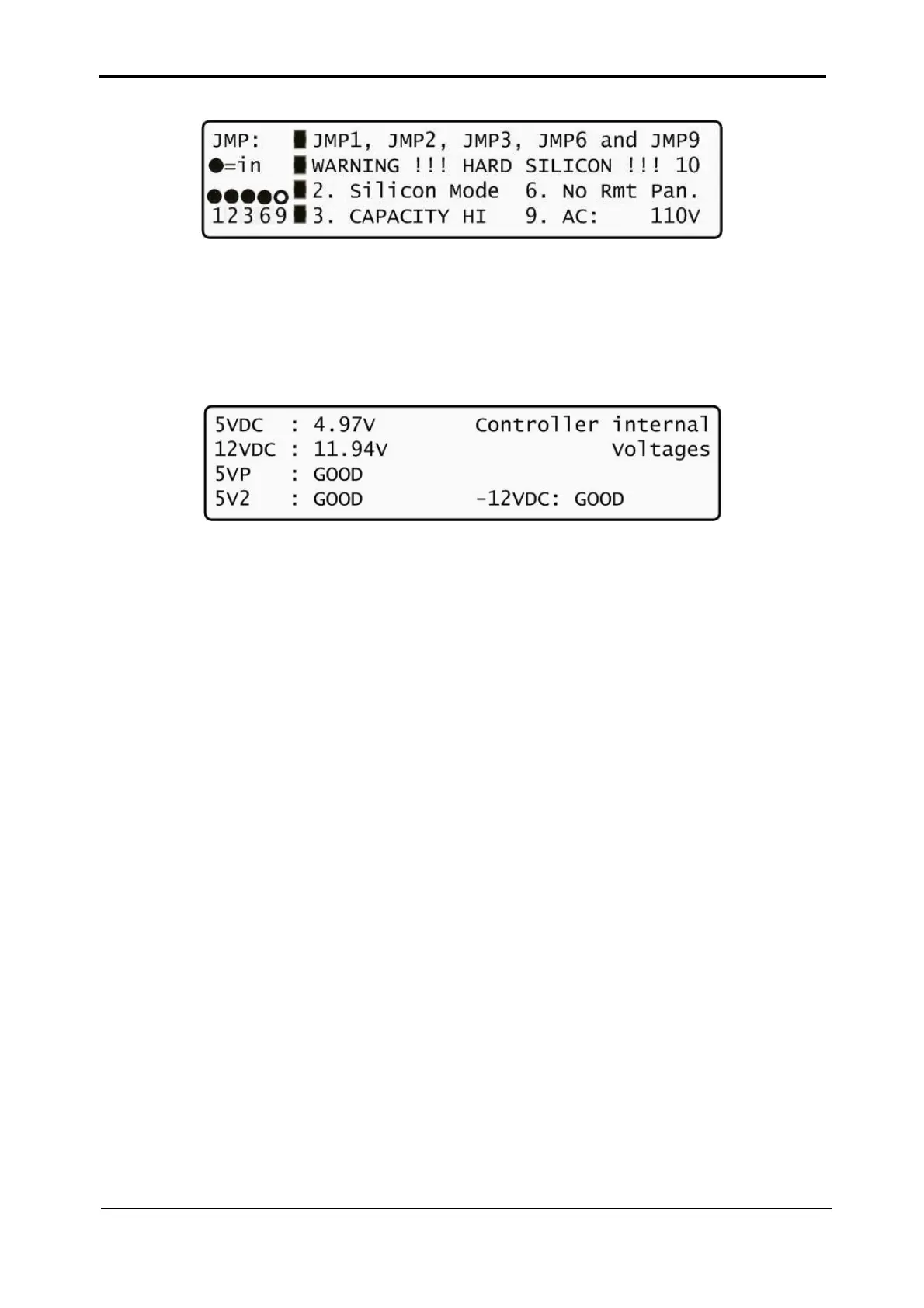

Figure 5-8. Jumper setting and general information
See section 3.7.1 beginning on page 33 for more information about jumpers 1, 2, 3, 6, and 9 on
PC714.
See Section
6.2.1.2 on page 69 for instruction for setting the battery capacity.
6. Pressing the down arrow once again displays measurements of various internal
voltages of the controller.
Figure 5-9. Internal controller voltages
7.
Press "ENTER" again to return to the menu (Figure 5-1).
