GEDRAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
Chapter 3 - Setup Instructions 3-47
Section 3-10
Available Probes
3-10-1 Supported probes
The LOGIQ P9/P7 supports the following types of probes:
Sector Phased Array
•Linear Array
Convex Array
Micro convex Array
Matrix Array
Split Array
Volume Probes (4D)
- Convex Array
NOTE: Not all probes described in this document may be available or cleared for sale in all markets.
3-10-1-1 Probe Naming Conventions
3-10-1-2 Probe Description

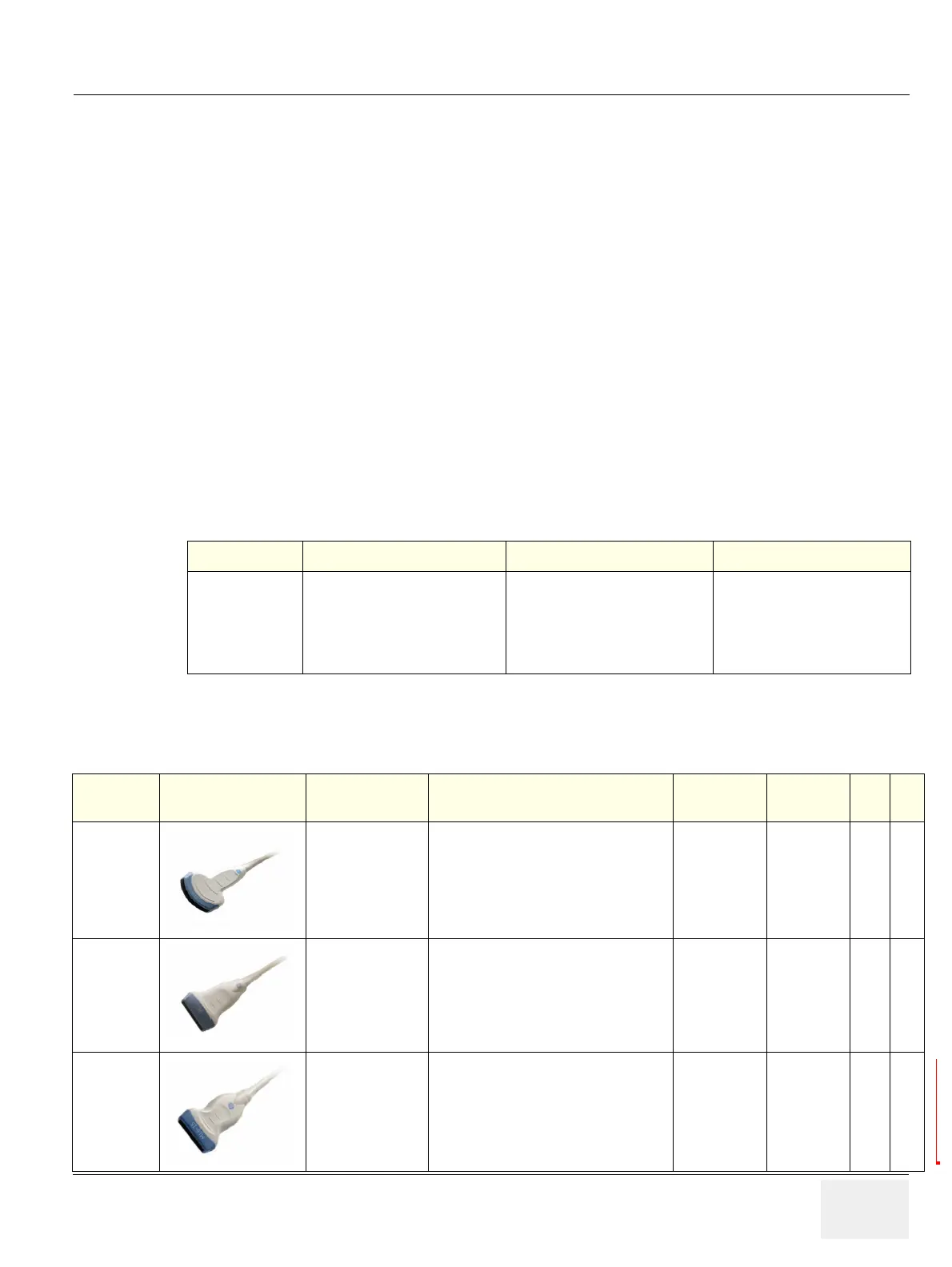

Table 3-21 Probe Description
Table 3-20 Probe Naming Convention
Type Application Frequency Connector Type
C=Convex
L=Linear
M=Matrix
S=Sector
R=Real time 4D
AB=Abdominal
IC=Intracavitary
NA=Neonatal
SP=Small Parts
“1-5” RS
Part Name Illustration Application Feature
Part
Number
Probe
Type
Qty
FR
U
C1-5-RS
Abdomen,
Vascular, OB/GYN,
Urology
B, CHI, CF, PDI, M, Anatomical M, PW,
B-Flow, B-Flow Color, Contrast,
Elastography, Cros
sXBeam,
LOG
IQV
iew, ATO/ASO, SRI-HD,
Advance
d 3D, Biopsy, Shear wave
5499608 Convex
11
9L-RS Abdomen, Small
Parts, Vascular,
Pediatric
B, CHI, CF, PDI, M, Anatomical M, PW,
B-Flow, B-Flow Color, Elastography,
Virtual Convex, CrossXBeam,
LOGIQView, ATO/ASO, SRI-HD,
Advanced 3D, Biopsy, B Steer+
5499511 Linear
11
ML6-15-RS Small Parts,
Vascular, Pediatric,
Neonatal,
Musculoskeletal
B, CHI, CF, PDI, M, Anatomical M, PW,
B-Flow, B-Flow Color, Elastography,
Virtual Convex, CrossXBeam,
LOGIQView, ATO/ASO, SRI-HD,
Advanced 3D, Biopsy, B Steer+
5499610
Linear
(Matrix)
11
