4-3-7-3 Color Flow-Mode
1) Press CF Mode button. (Active CF Mode button on "User Configurable Mode Rotary".)
2) Increase CF Gain until noise floor shows up.
3) Verify no vertical “streaks” of color that significantly contrasts the surrounding color.

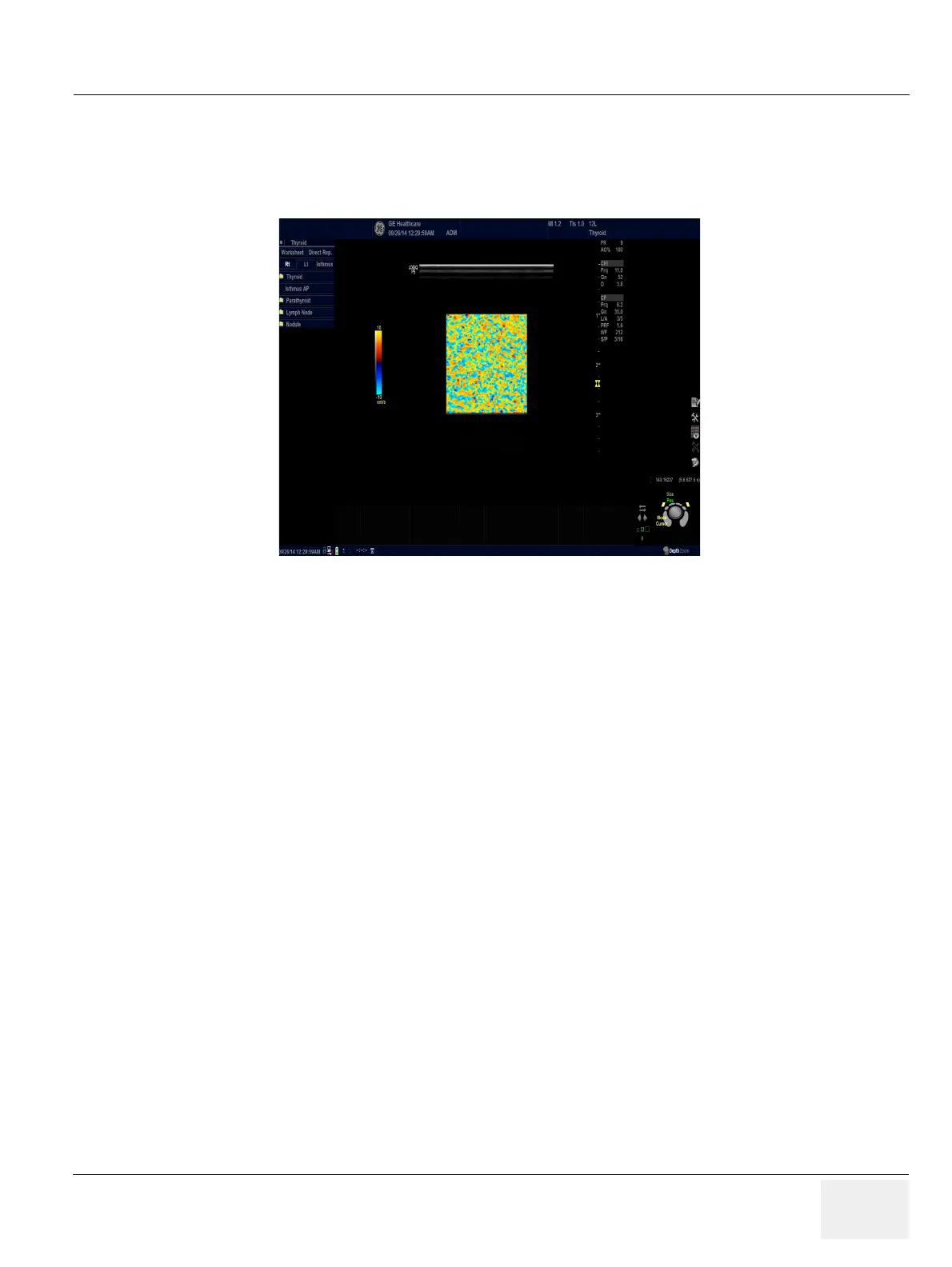

Figure 4-25 Color Flow-Mode
