GE
DRAFT
LOGIQ P9/P7
D
IRECTION
5604324
, R
EVISION
11
DRAFT
(J
ANUARY
24, 2019
)
S
ERVICE
M
ANUAL
Chapter 4 - Funct
ional Checks
4-18
4-3-4
System Information
4-3-4-1
Software Version
1)
From the touch panel, select
Utility ->
System -> About.
2)
Note “Software Version” in Software Group.
3)
Note "Software Revision" in Software Group.
4)
Note “Image Part Number” in
System Image.

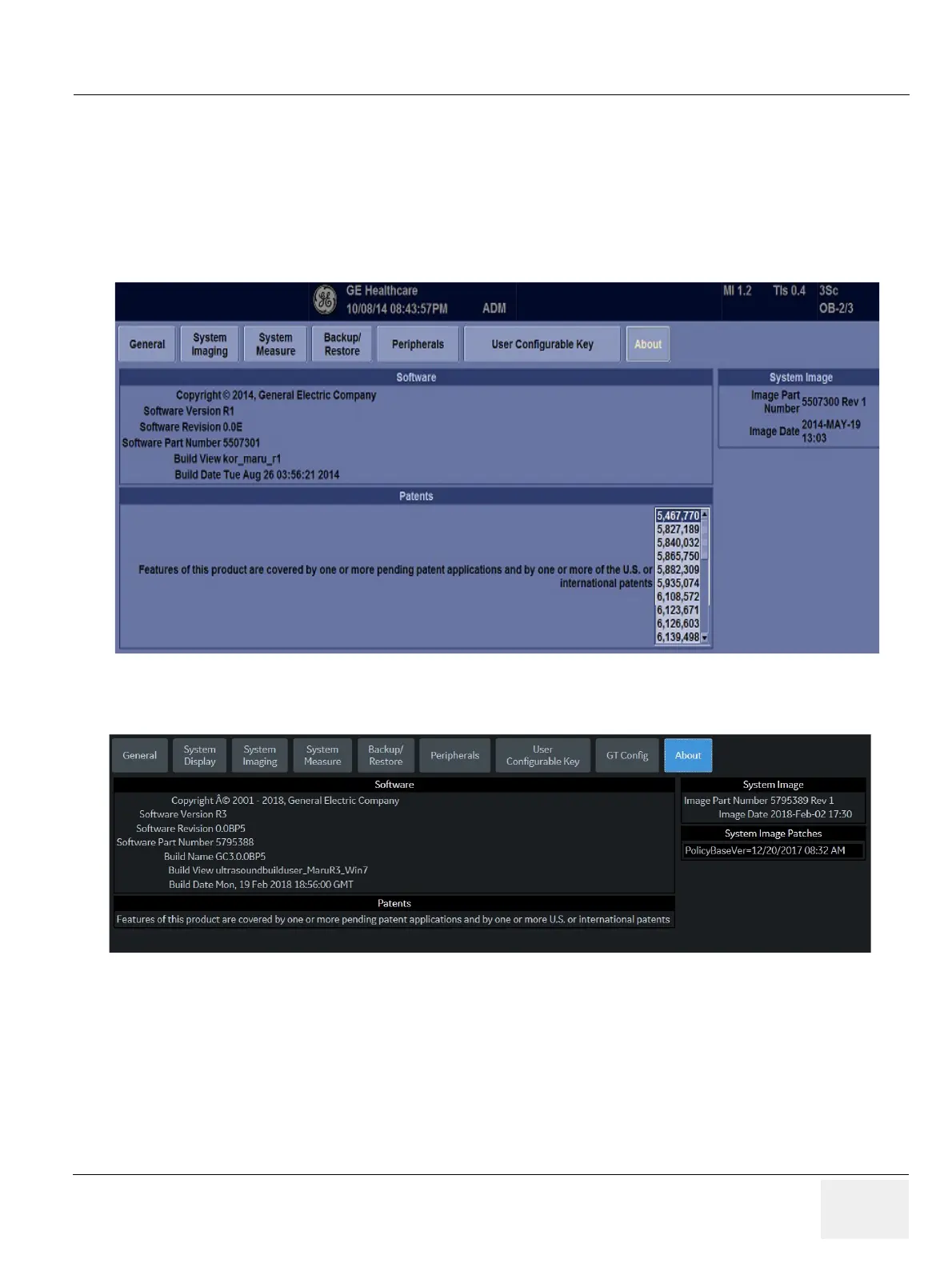

Figure 4-15 Software version (
R2 and R2.5)
Figure 4-16 Software version (R3)
157
159
Table of Contents
