Chapter 8 - Replacement Procedures 8-159

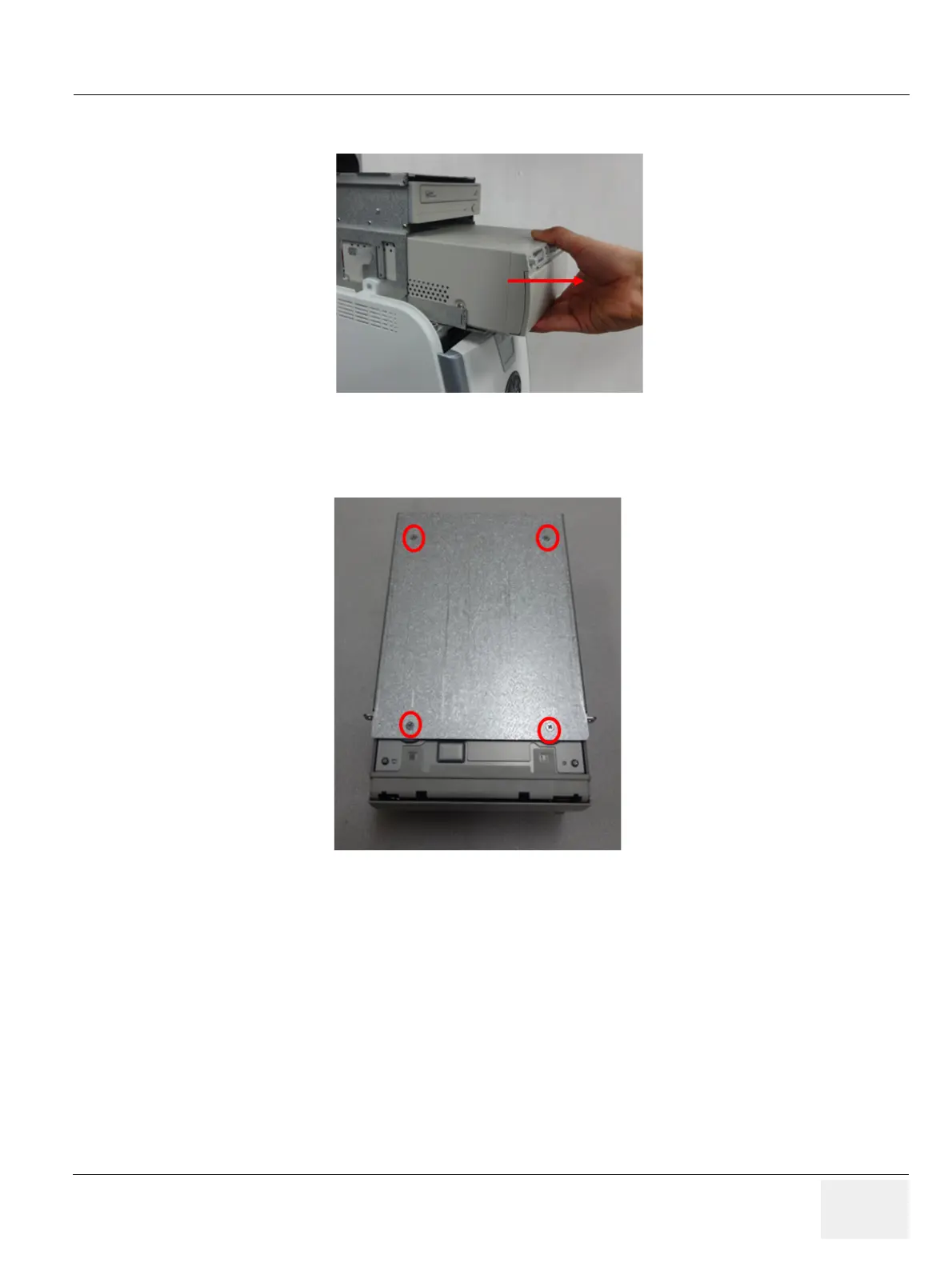

2) Pull out BW printer as following figure.
Figure 8-187 Pulling out the BW printer
3) Remove 4 screws on BW printer bottom part. Refer to following figure.
Figure 8-188 4 screws points
8-35-5 Installation Procedure
1) Parts to be installed in reverse order on removal.
8-35-6 Functional Check
Test 1: Print an image by pressing the button P1 on the operator panel. (P1 key should be configured
correctly. Refer to section 3-8-4 Adding Printer to the system)
Verify1: - Verify that image can be printed.
Verify2: - Verify that printed image has no distortion as compared the image on screen.
