GE
RAFT
LOGIQ P9/P7
D
IRECTION
5604324
, R
EVISION
11
DRAFT
(J
ANUARY
24, 2019)
S
ERVICE
M
ANUAL
8-70
Section 8-9 - Re
placemen
t of Rear Co
ver
Section 8-9
Replacement of Rear Cover
8-9-1
Manpower
1 person, 1 m
in.
8-9-2
Tools
No tool.
8-9-3
Removal Procedure
1)
Pull the rear cover and remove it as following figure
Figure 8-55

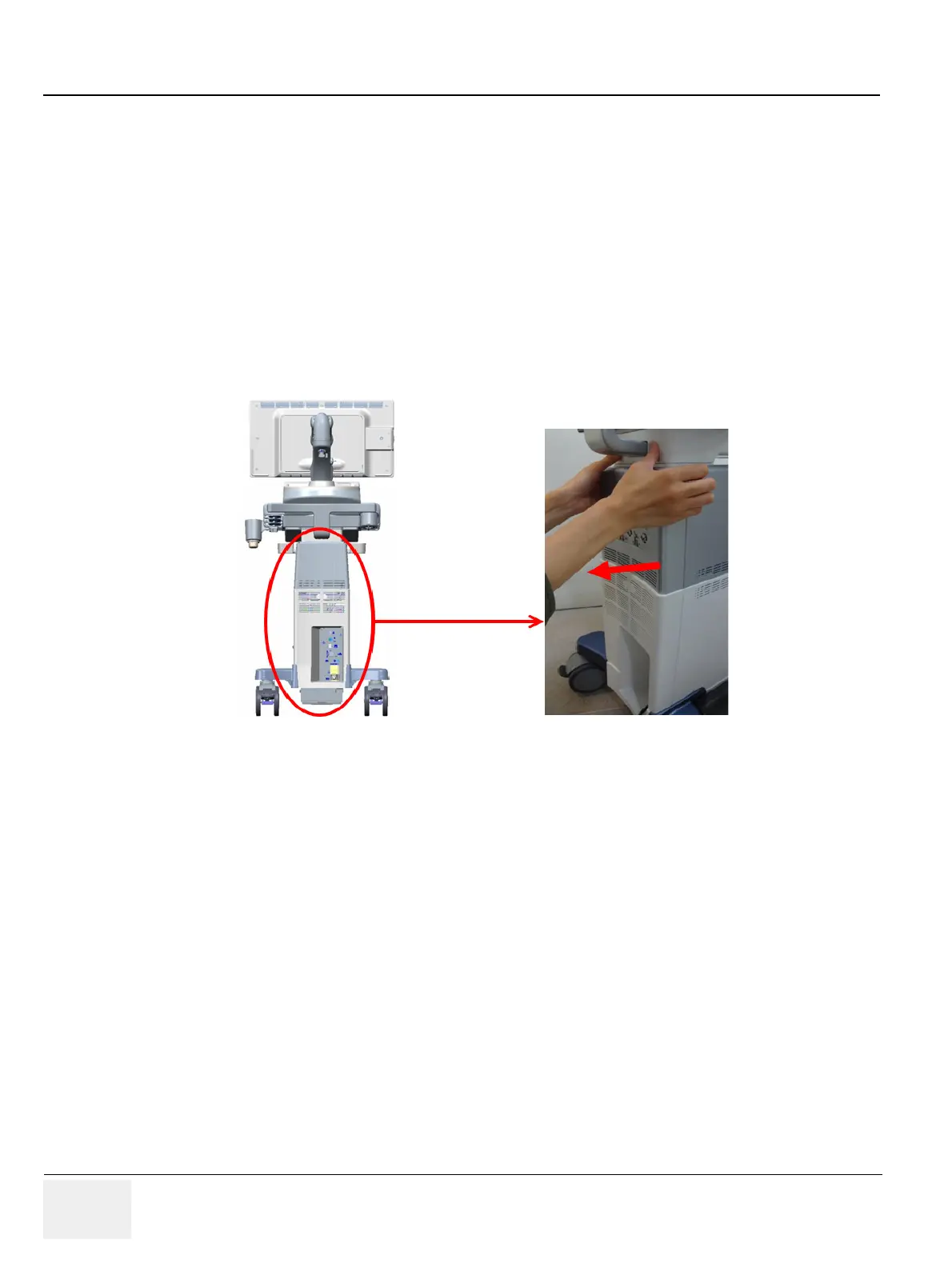

Removal of Rear Cover
.
8-9-4
Installation Procedure
1)
Cover to be installed in reverse
order of removal.
8-9-5
Functional Check
Visual inspection only.
395
397
