8-96 Section 8-15 - Replacement of the Caps for Hardkeys
Section 8-15
Replacement of the Caps for Hardkeys
8-15-1 Manpower
1 person, approx. 1 minute/cap.
8-15-2 Tools
Small-sized slotted screwdriver or tweezers.
8-15-3 Removal Procedure
1) By means of a small slotted screwdriver, carefully push against the hardkey cap.
2) Lift the cap, until it is completely loosened from its base.
3) Place the new hardkey cap down until it snaps into position.

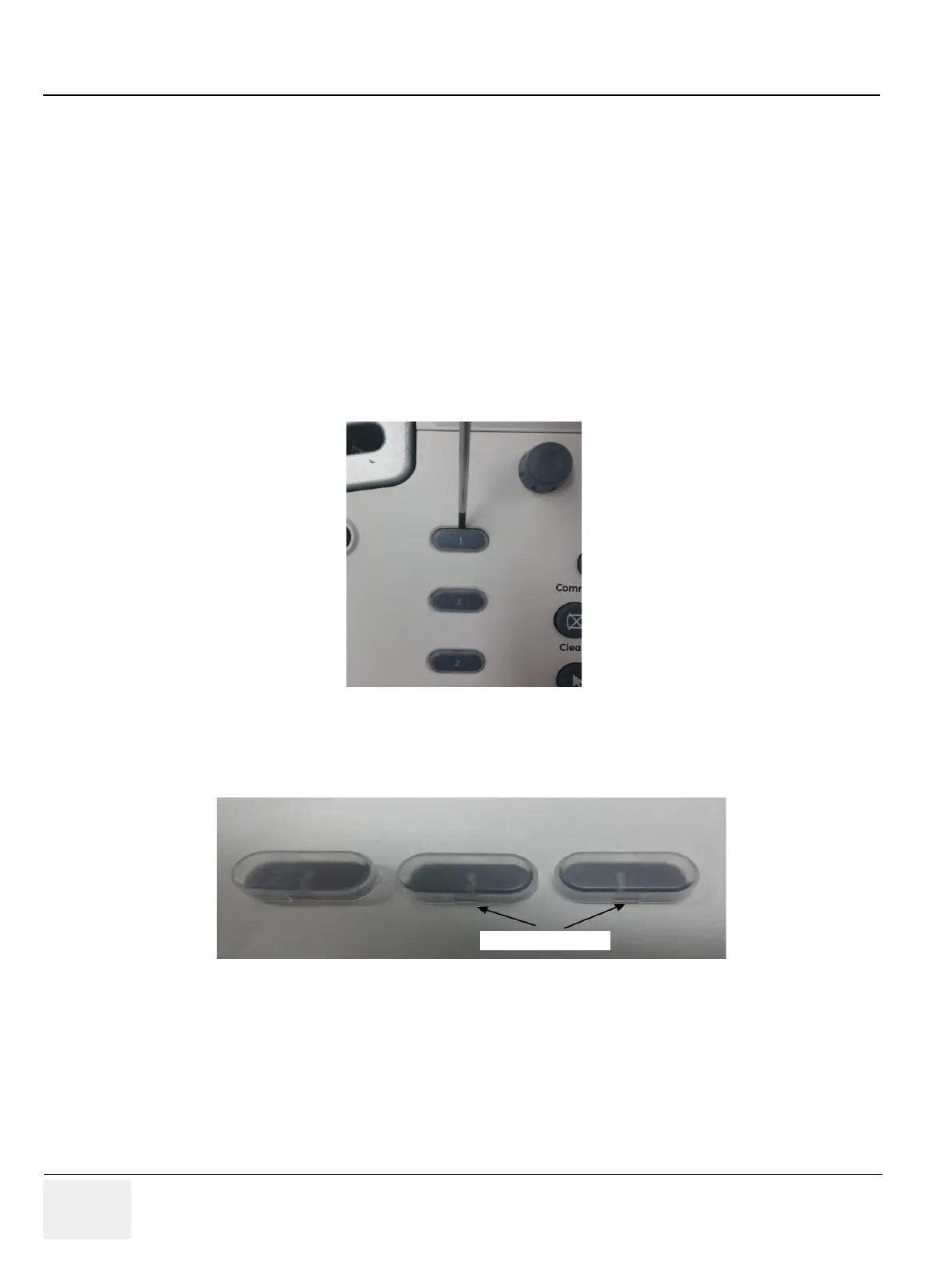

Figure 8-99 Push against the circle cap and lift it
NOTE: Each of the key have “Slit” where flathead screwdriver can be inserted for easy removal.
Figure 8-100 Slit for removal
8-15-4 Installation Procedure
Parts to be installed in reverse order of removal.
Slit for removal
