GEDRAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-93

8-14-3-8 Removal Procedure - Encoder on PWA

1) Remove OP Panel Main PWA Assy.

2) Loosen nut.

3) Remove part

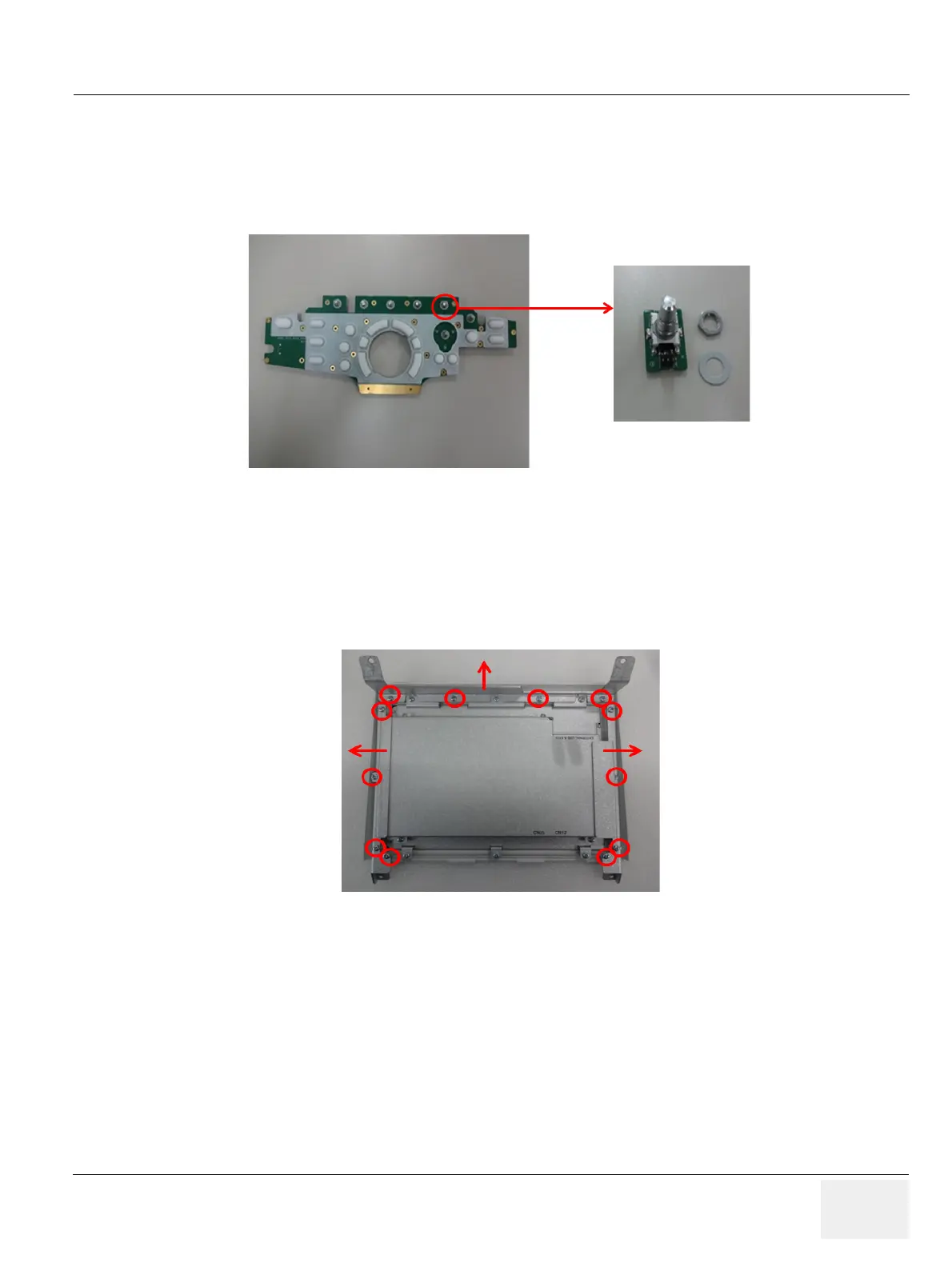

Figure 8-93 Removal of Encoder

8-14-3-9 Removal Procedure - Touch panel

1) Remove OP Panel Assy.

2) Separate LCD Touch Panel Assy from OP Panel Assy.

3) Remove 12 screws on 3 BRKT and remove 3 BRKT Refer to following figure.

Figure 8-94 Screw points to remove 3 BRKT
