Chapter 8 - Replacement Procedures 8-141
Section 8-27
Replacement of Wireless LAN
8-27-1 Manpower
1 Person, 5 minutes.
8-27-2 Tools
None Required.
8-27-3 Removal Procedure
1) Remove Top Cover (refer to section 8-7)
2) Attach loop sheet on Wireless LAN dongle. Refer to below figure.

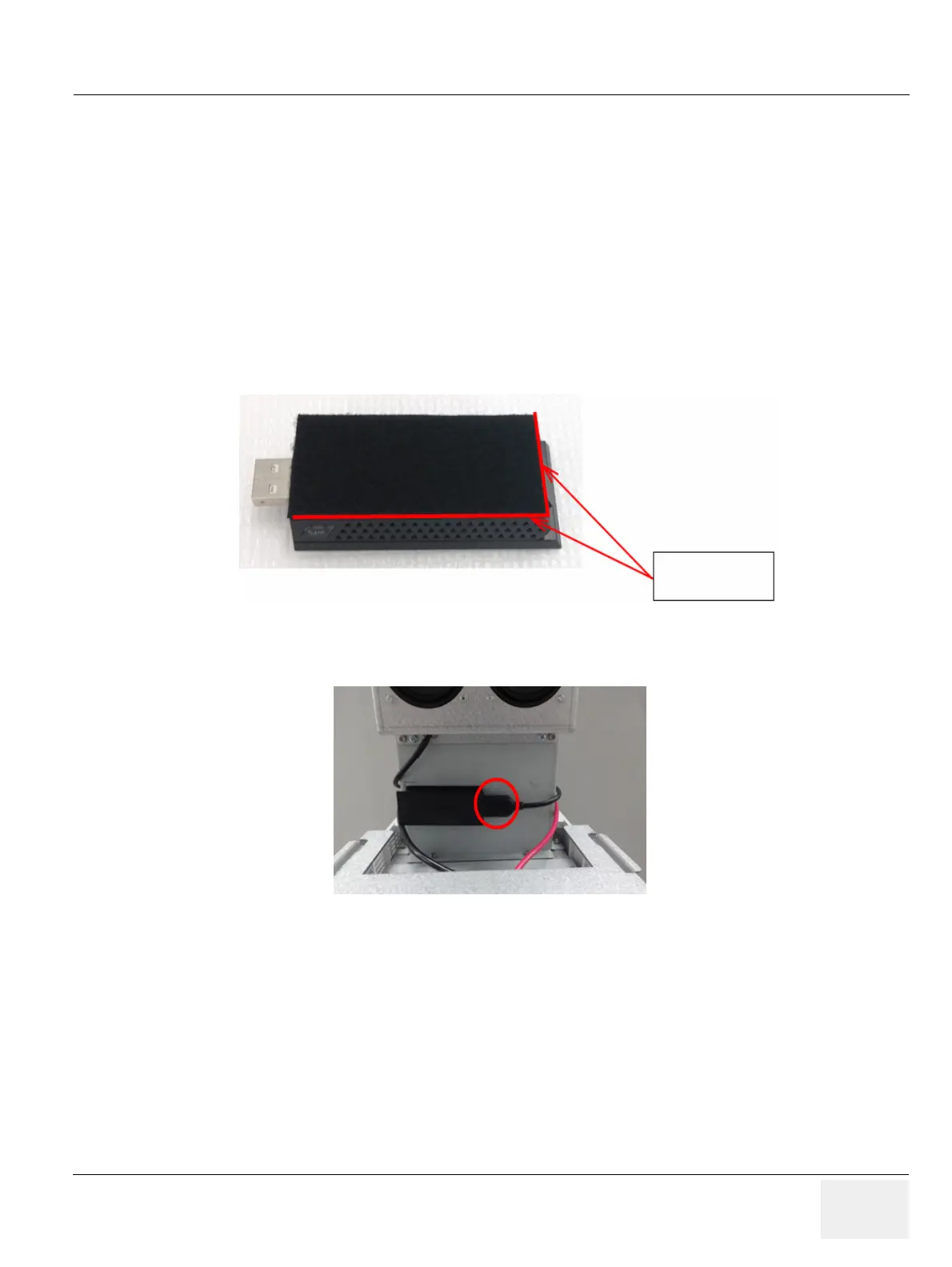

Figure 8-165 Attachment of loop sheet.
3) Disconnect connector and carefully detach out Wireless LAN. Refer to following figure.
Figure 8-166 Removal of Wireless LAN
8-27-4 Installation Procedure
Parts to be installed in reverse order of removal.
8-27-5 Functional Check
Visual Check Only
Align edge
