Chapter 5 - Components and Functions (Theory) 5-21
5-7-4 Air Flow Distribution
NOTE: Clean the Air Filter periodically.
Through the filter grid on the front of the system, air flow into the LOGIQ P9/P7 scanner. By means of
the 2 FAN, air is blown through the nest-box, and the warm air exits the scanner through holes in the
left side panel and rear of the system.

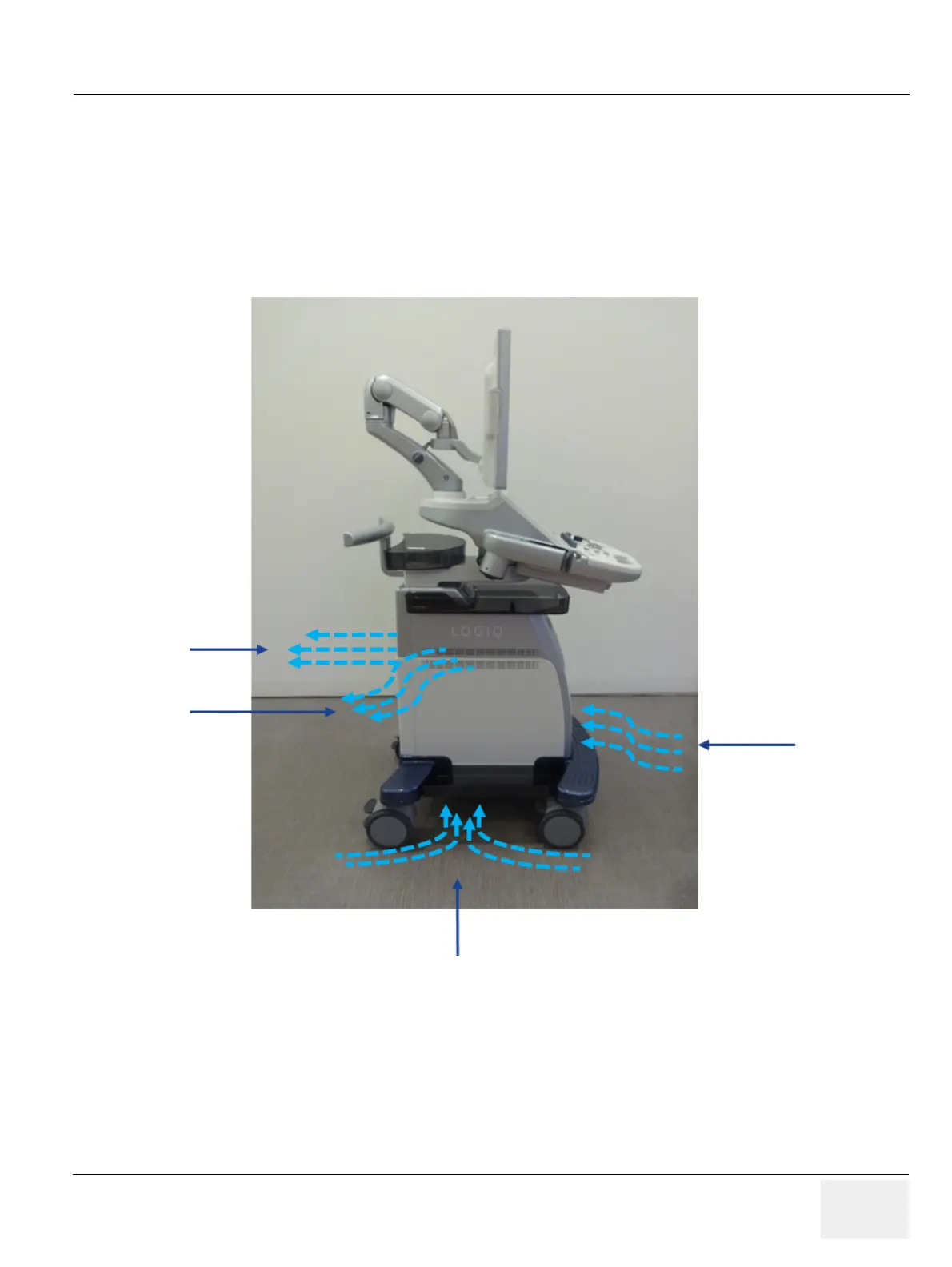

Figure 5-9 Air Inlet/Outlet at LOGIQ P9/P7
(Rear)
Main Air inlet
(Side)
Main Air inlet
(Filter grid)
(Filter gird)
Main Air Outlet
