Replacement of the COM Express

8-23-1 Manpower

1 Person, 5 minutes.

8-23-2 Tools

Standard Phillips Screwdriver.

8-23-3 Removal Procedure

1) Separate MCB Assy and MDC Assy. (Refer to section 8-17-10)

2) Remove 8 screws around MCB assy and carefully separate MCB assy from MPI assy. Refer to

following figure.

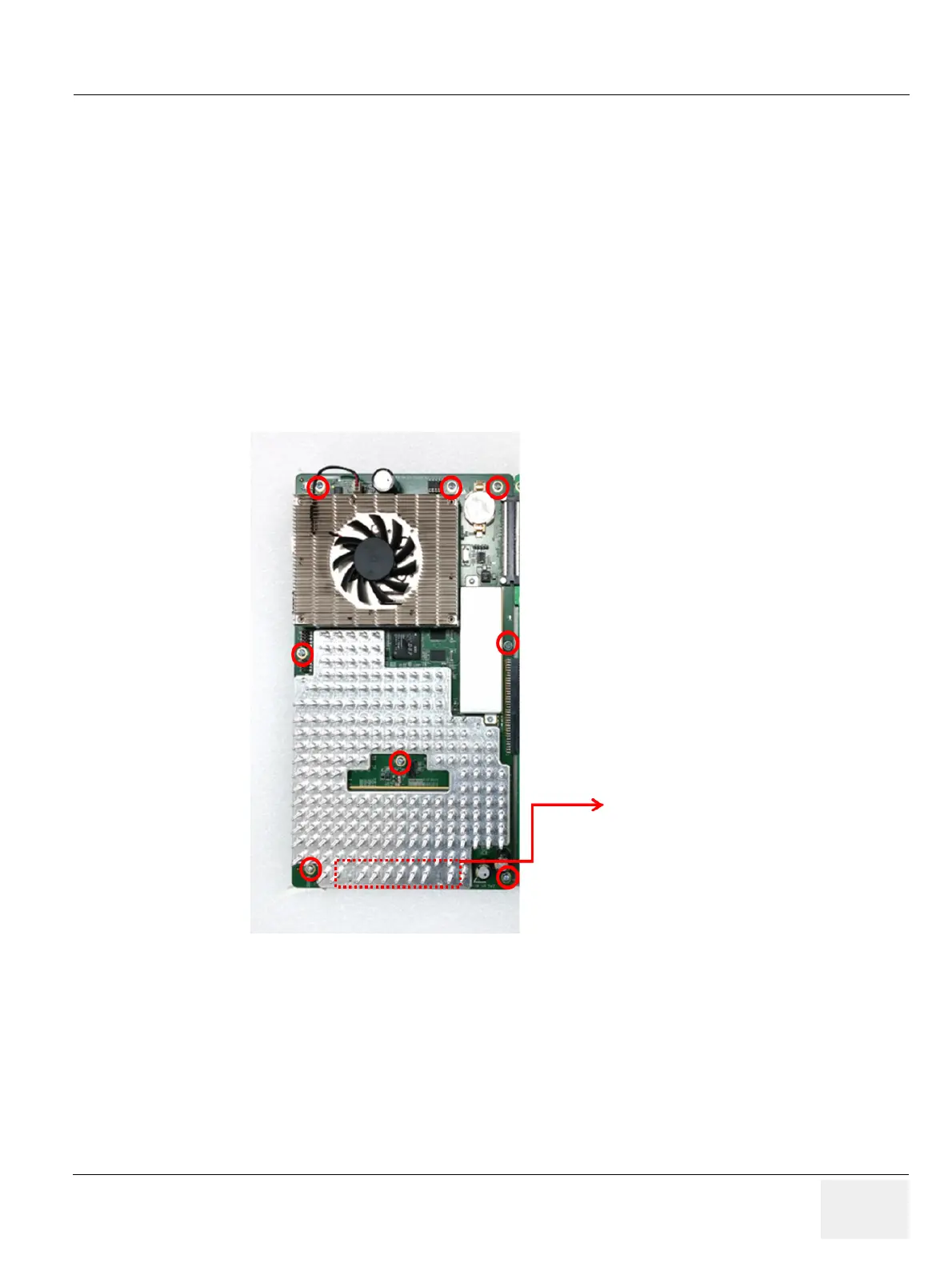

Figure 8-151 Separating MPI and MCB

Carefully disconnect MCB from MPI
