GERAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
8-100 Section 8-16 - Replacement of Key Caps (by special native language keys)

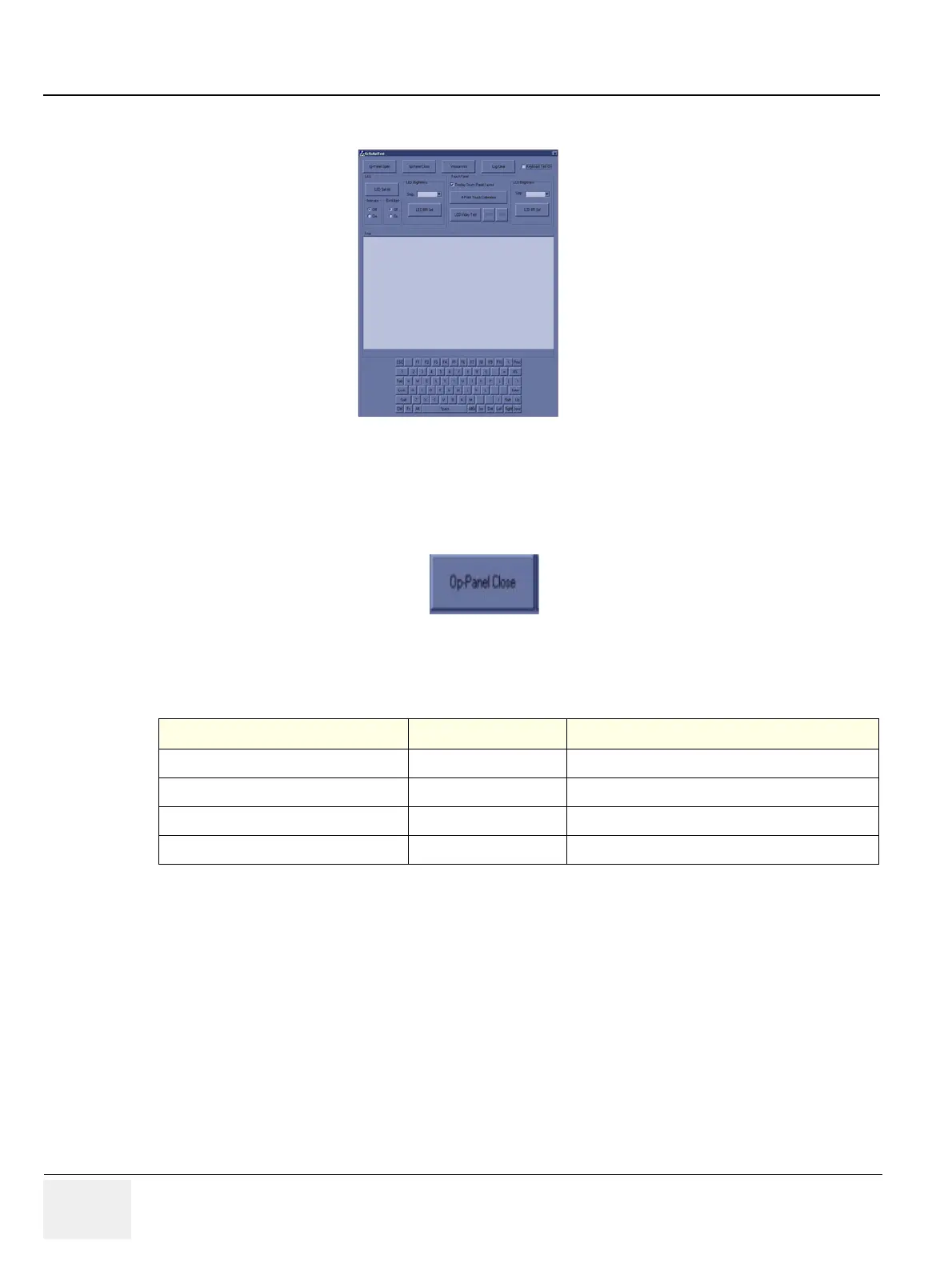

4) Run the OPIO Test tool (ScFpApiTest.exe) in the desktop screen and then click the “Op-panel
Open” button of test tool. (Program path: C:\scanner\target\bin\ScFpApiTest.exe)
Figure 8-104
5) Check on the “Keyboard Test on” check box.
6) Check that pressed key is displayed except for ‘Fn’ key, when AN Keyboard is pressed.
7) End ScFpApiTest by click the “Op-Panel Close” button.
Figure 8-105
8-16-7 Functional Check
Test Refer to Note
System Exterior Visual Check
section 4-3-1
Control panel visual check only
Power On/Off
section 4-3-3
System Integration Checks
section 4-3-5
section 4-3-5-1 OPIO Test only
OPIO Interface Check
section 4-3-8
