GEDRAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-83

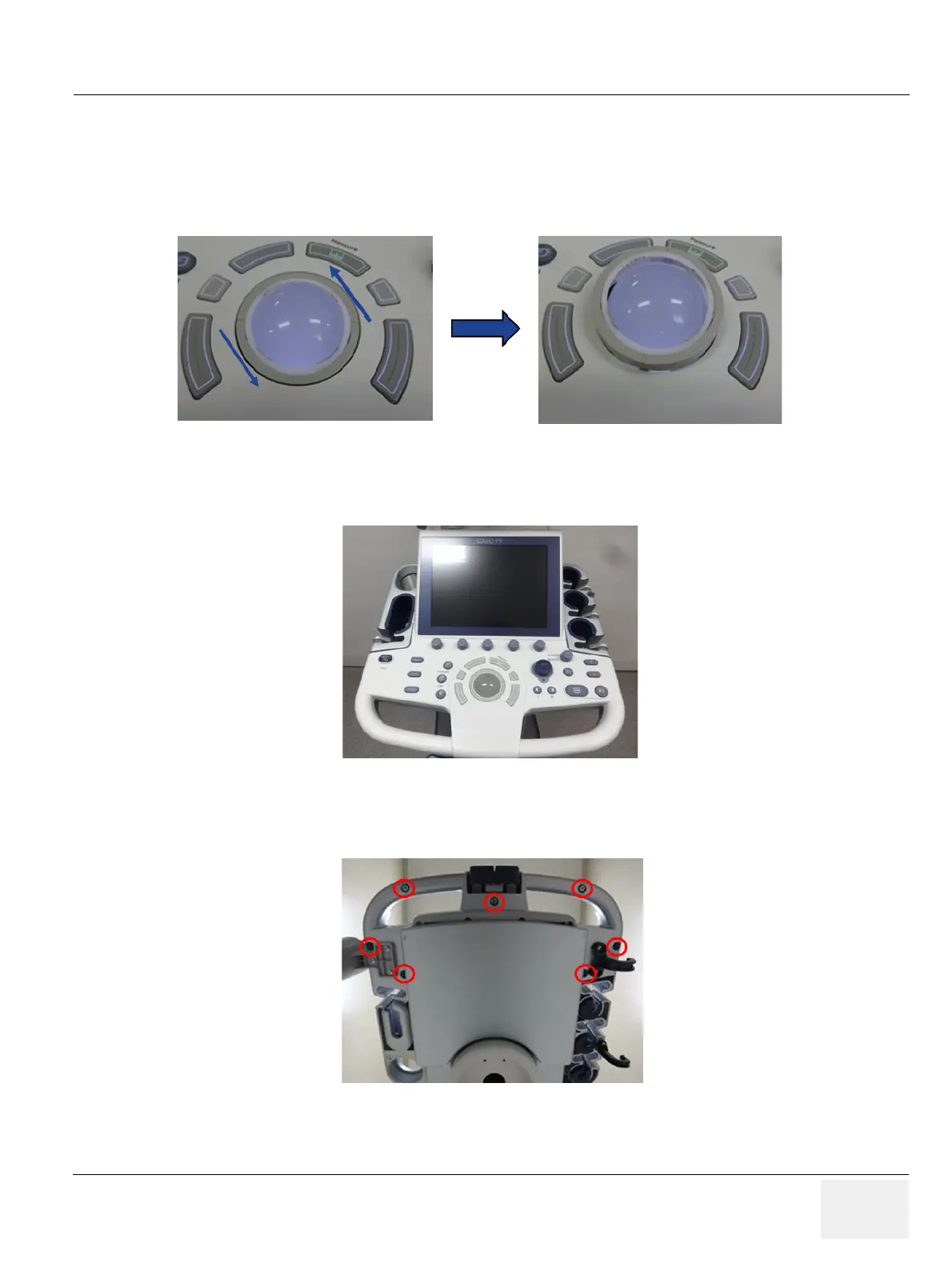

8-14-3-1 Removal Procedure - Trackball Ring

NOTE: Removal of Trackball Ring and Cleaning does not require tools.

1) Turn the ring counter clock-wise

2) Lift trackball from OP Panel

Figure 8-73 Trackball Ring

8-14-3-2 Removal Procedure - OP Panel Assy

Figure 8-74 OP Panel Assy

1) Remove 7 screws from bottom of the OPIO Base.

Figure 8-75 Bottom of OPIO Base
