GEDRAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-135

Section 8-24

Replacement of the HDD/SSD

8-24-1 Manpower

1 Person, 5 minutes.

8-24-2 Tools

Standard Phillips Screwdriver.

8-24-3 Removal Procedure

1) Open the front cover. (refer to section 8-6)

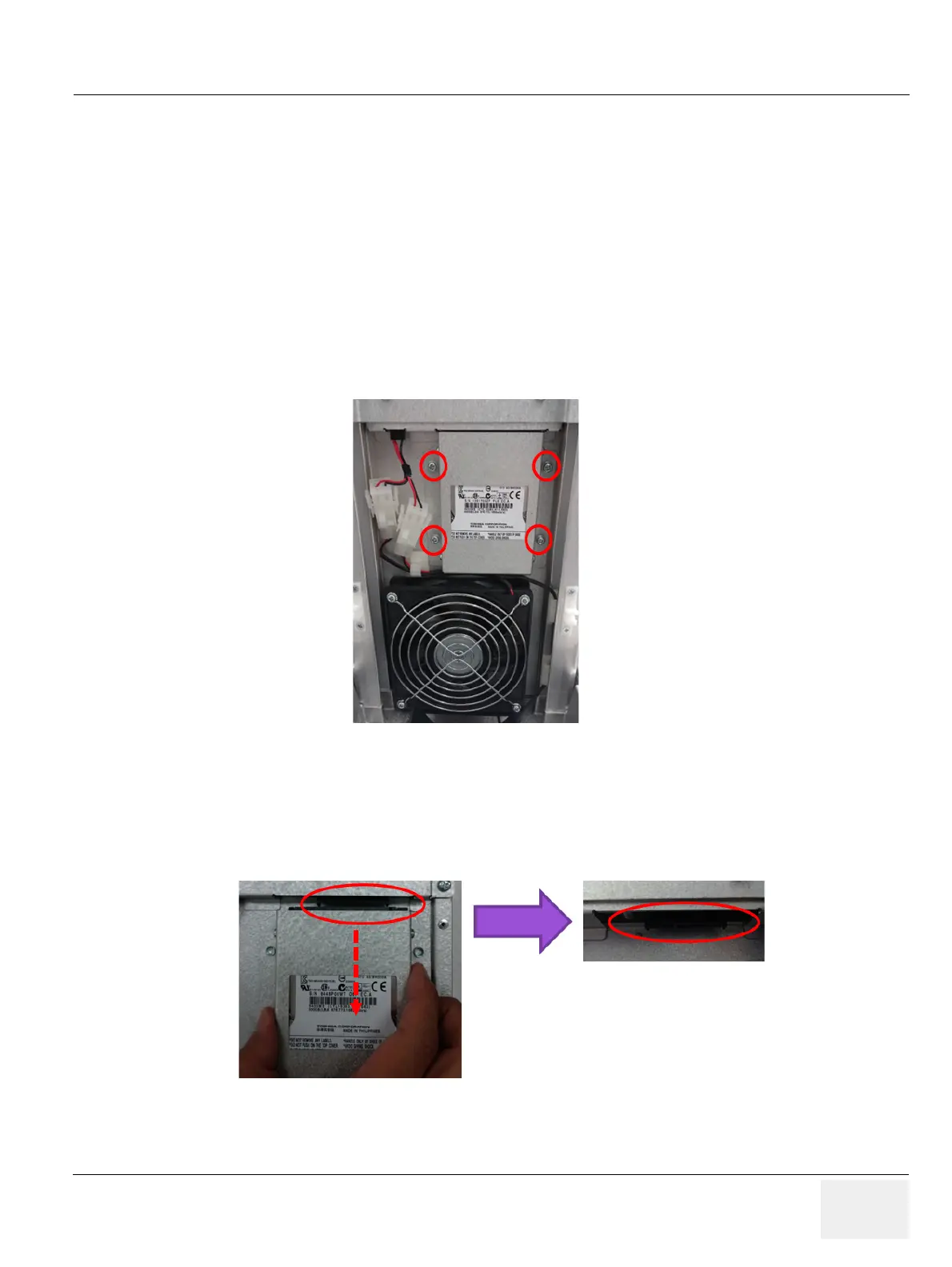

2) Remove 4 screws around HDD/SSD Bracket Refer to following figure.

Figure 8-157 Screw points around HDD/SSD Bracket.

3) Carefully pull down HDD/SSD assy. Refer to following figure.

NOTE: Be careful not to damage HDD/SSD connector

Figure 8-158 Removal of HDD/SSD assy and position of HDD/SSD connector
