GERAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

8-154 Section 8-31 - Replacement of the Cable Hook

Section 8-31

Replacement of the Cable Hook

8-31-1 Manpower

1 Person, 5 minutes.

8-31-2 Tools

Standard Phillips Screwdriver.

8-31-3 Removal Procedure

1) Remove screws as following figure and carefully remove cable hook.

NOTE: Make sure not to lose washers when removing hooks.

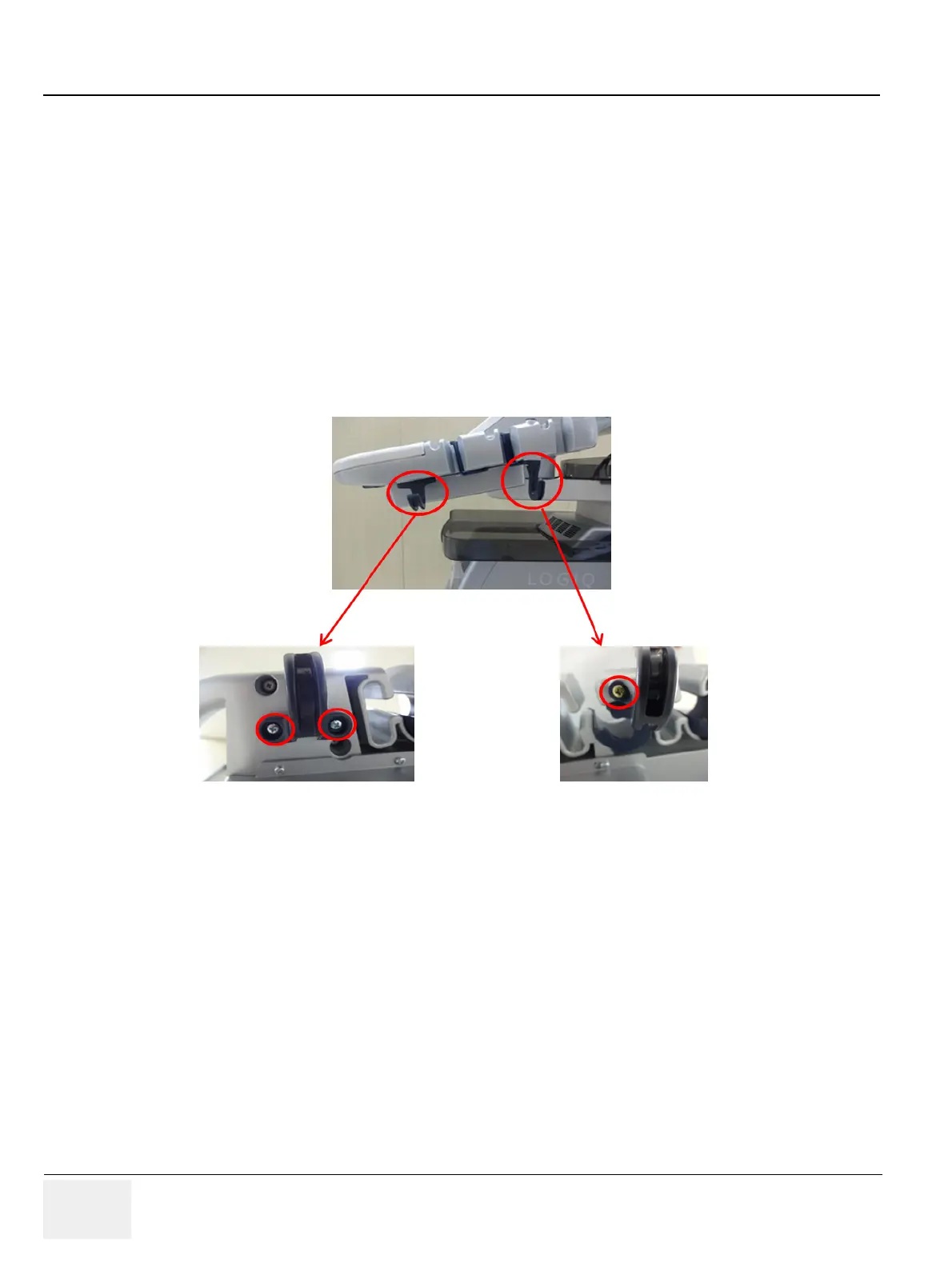

Figure 8-182 Removal of Cable hook

8-31-4 Installation Procedure

Parts to be installed in reverse order of removal.

8-31-5 Functional Check

Visual inspection Only.
