4-3-2-4 Swivel/Brake Lock Caster
NOTE: This procedure applies to RIGHT REAR Caster only.

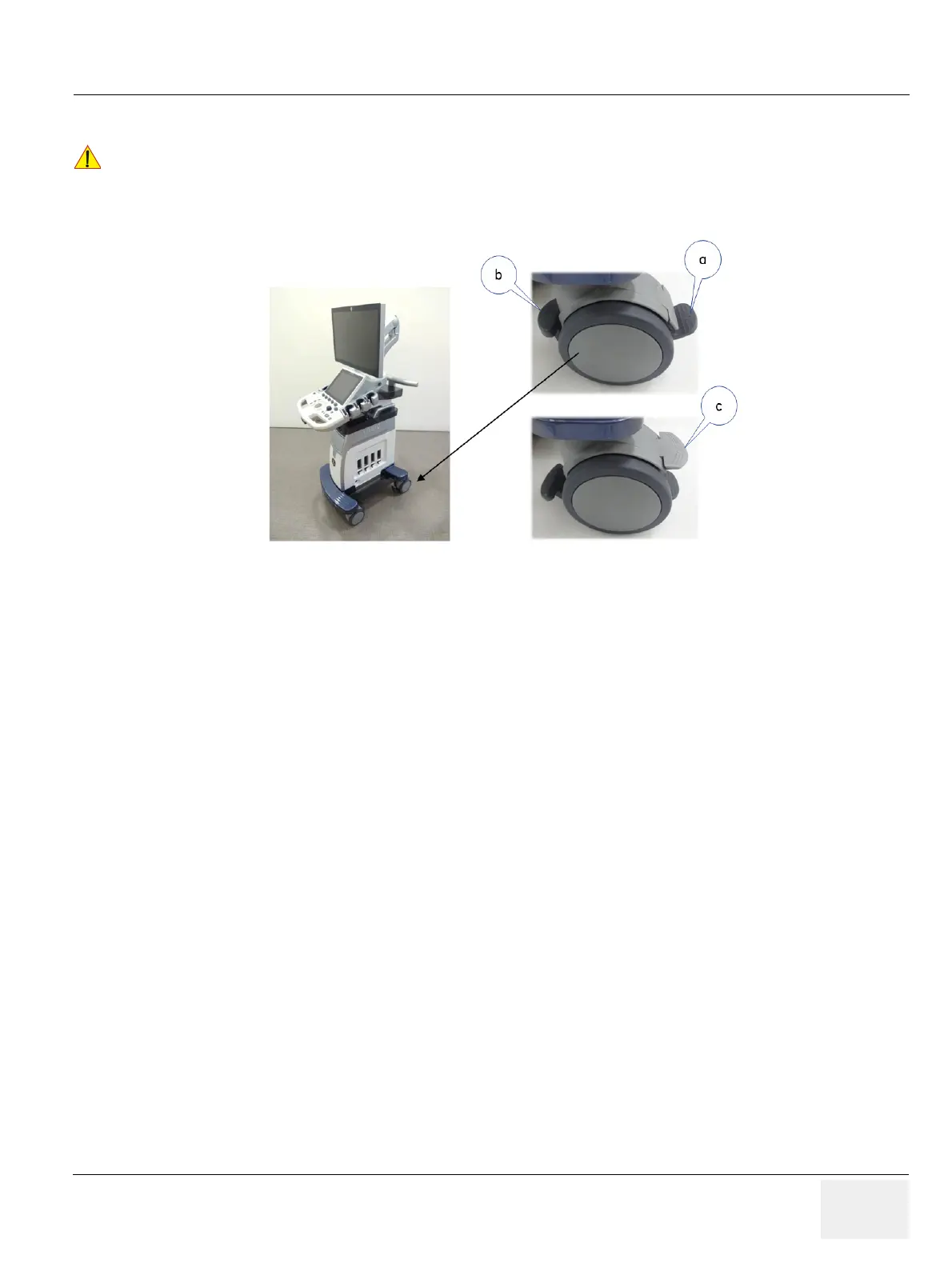

Figure 4-9 Right Rear Caster
1) Press ‘a’. (see: Figure 4-8)
2) Rotate wheel until it locks (only one lock position in 360deg turn).
3) Verify Swivel Lock engages.
4) Press ‘b’ downward. (see: Figure 4-8)
5) Verify Brake is applied to the wheel. (i.e. Wheel does not rotate)
6) Press ‘b’ upward.
7) Verify Brake is released.
8) Press ‘c’. (see: Figure 4-8)
9) Verify Swivel is released.
CAUTION
!! CAUTION:
System weighs approximately 60kg. Pay attention for system stability when working with the
casters
