GE
DRAFT
LOGIQ P9/P7
D
IRECTION
5604324
, R
EVISION
11
DRAFT
(J
ANUARY
24, 2019
)
S
ERVICE
M
ANUAL
Chapter 3 - Setup Instructions
3-17
3-6-4
Connecting the Footswitch
The footswitch should be
directly connected to an
y accessible USB-
port on the LOGIQ P9/P7 (e.g., on
rear of the system).
NOTE:
Connection of the Footswitch is always th
e same
(no differences between PC-Mo
therboard version of the system).

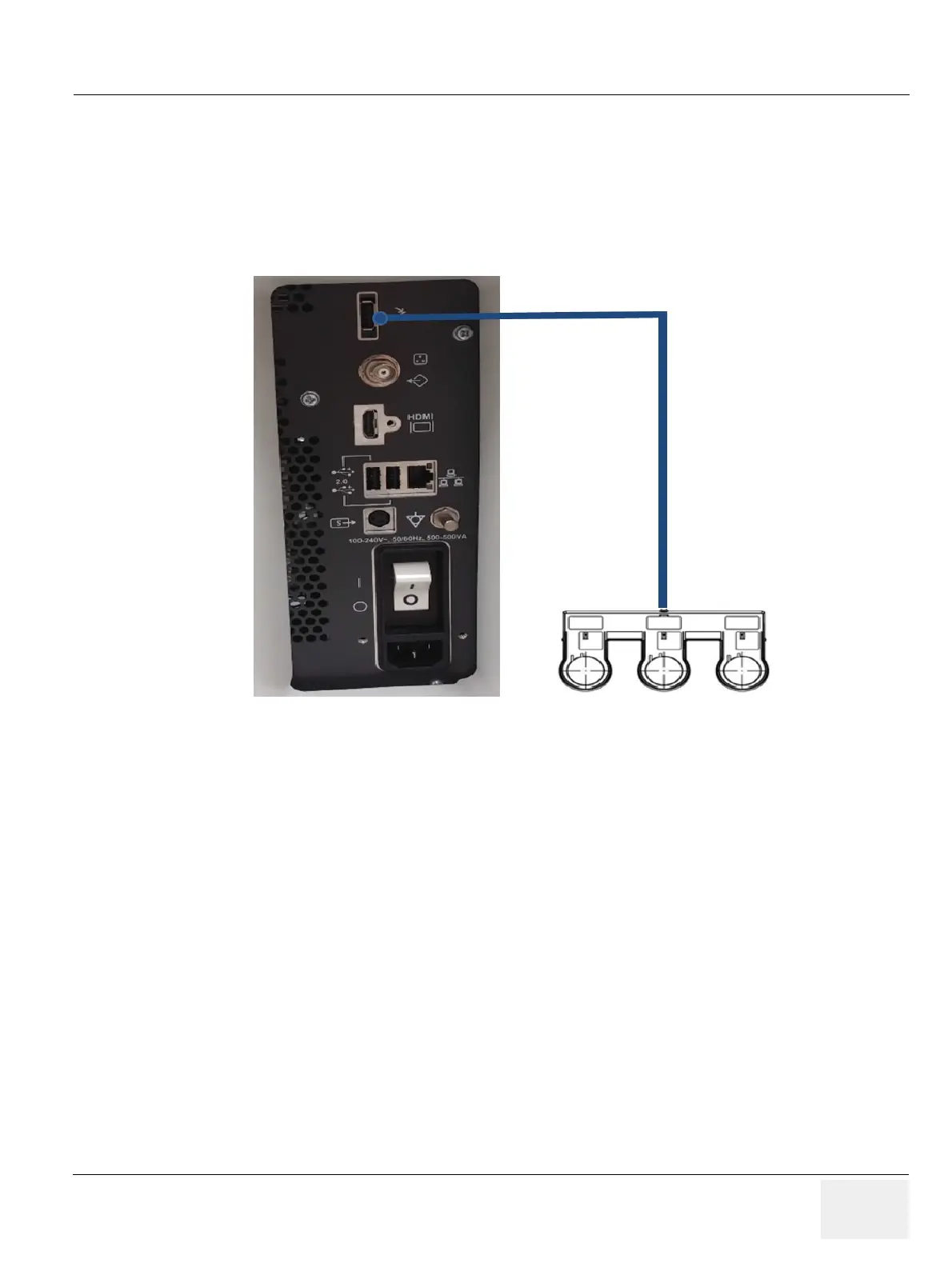

Figure 3-8 Conne
ction Scheme -
Footswitch
84
86
