GERAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
5-20 Section 5-7 - Mechanical Descriptions
Section 5-7
Mechanical Descriptions
5-7-1 Physical Dimensions
Dimentions and Weight
Height: 1,375mm (Minimum), 1,570mm (Max.)
Width: 530mm (Monitor), 430mm (Operator Panel)
•Depth:740mm
Weight: 60kg (133 lbs)
5-7-2 LCD Monitor
The LOGIQ P9/P7 has a free adjustable LCD monitor in relation to the user interface.
position up/down: +/- 7.5 cm
position left/right: +/- 18cm
rotation up/down: +90°/-15°
rotation left/right: +/- 90°
5-7-3 OPIO Positioning
The control console can be rotated, translated and adjusted in height.

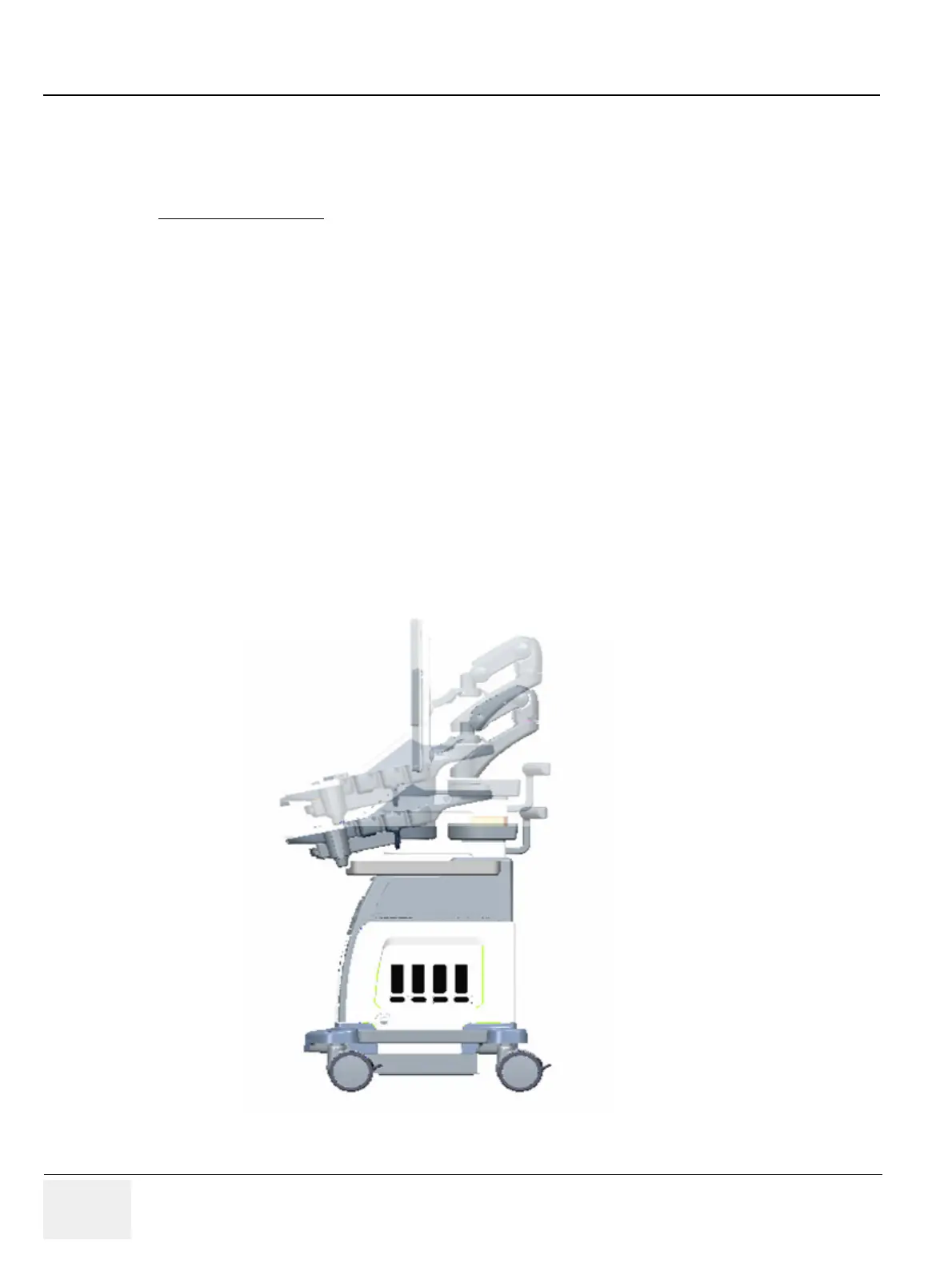

Figure 5-8 adjustable Control Console
Highest
810mm
Lowest
910mm
