GERAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

8-76 Section 8-11 - Replacement of Monitor and LCD Arm Plastic Covers

8-11-6 LCD Arm Plastic Covers Remove Procedure

1) Unscrew 1 screw, than remove 3rd Arm Cover. Refer to the figure below.

2) Remove 2nd Axis Cover. Refer to the figure below.

3) Remove 2nd Arm Cover. Refer to the figure below.

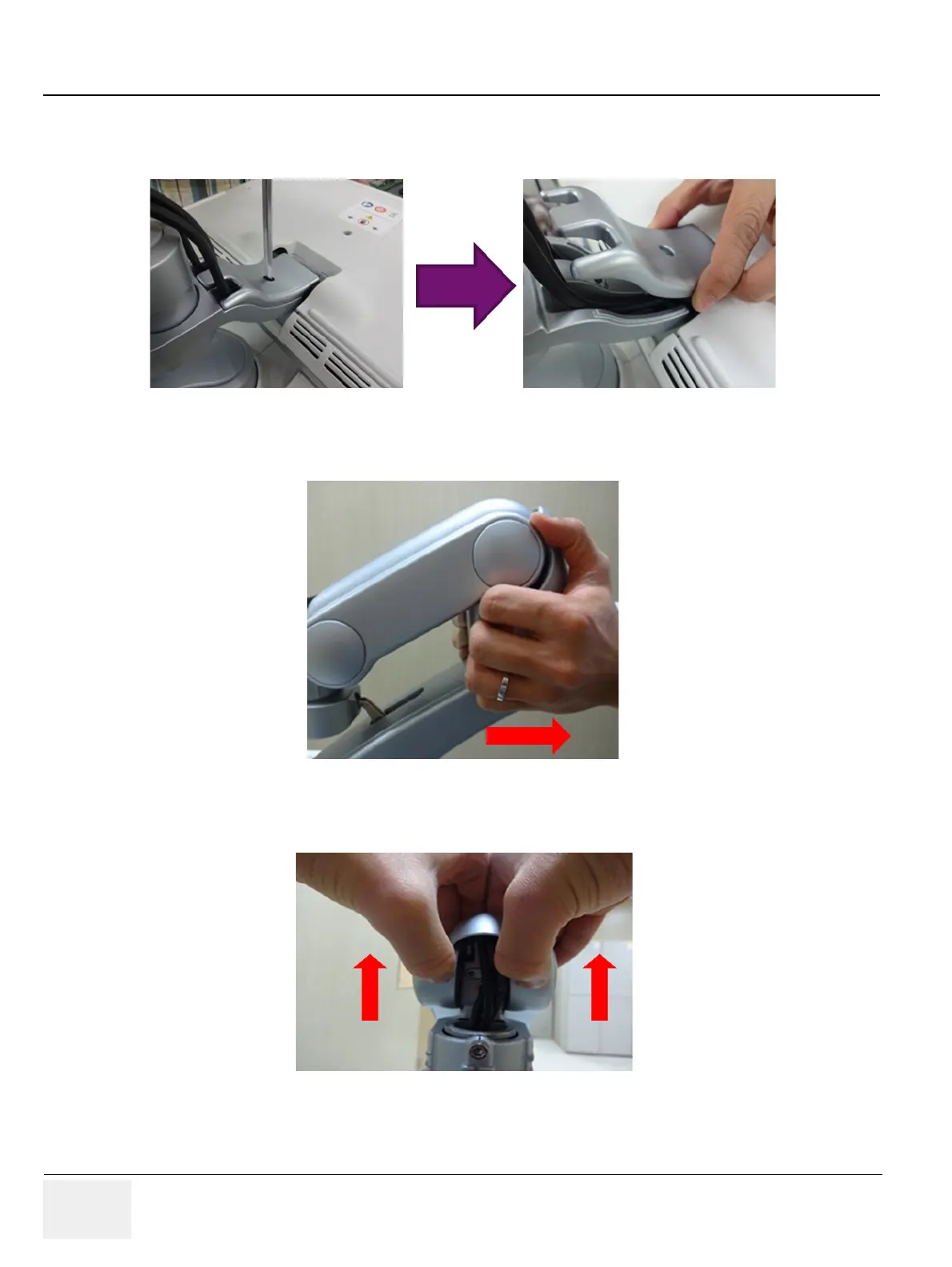

Figure 8-64 Removing the 3rd Arm Cover

Figure 8-65 Removing 2nd Axis Cover

Figure 8-66 Removing 2nd Arm Cover
