8-180 Section 8-46 - Replacement of battery pack for LP7-P9 R2 Battery option

Section 8-46

Replacement of battery pack for LP7-P9 R2 Battery option

8-46-1 Manpower

1 person, 30 minutes

8-46-2 Tools

Standard Phillips Screwdriver, Hex-Wrench, Socket driver

8-46-3 Removal Procedure

1) Unscrew 2 screws to remove POWER CORD FIX BRKT. Then disconnect POWER CORD and

remove REAR COVER.

2) Unscrew 5 screws to remove REAR CABLE COVER BRKT. Then disconnect all cables.

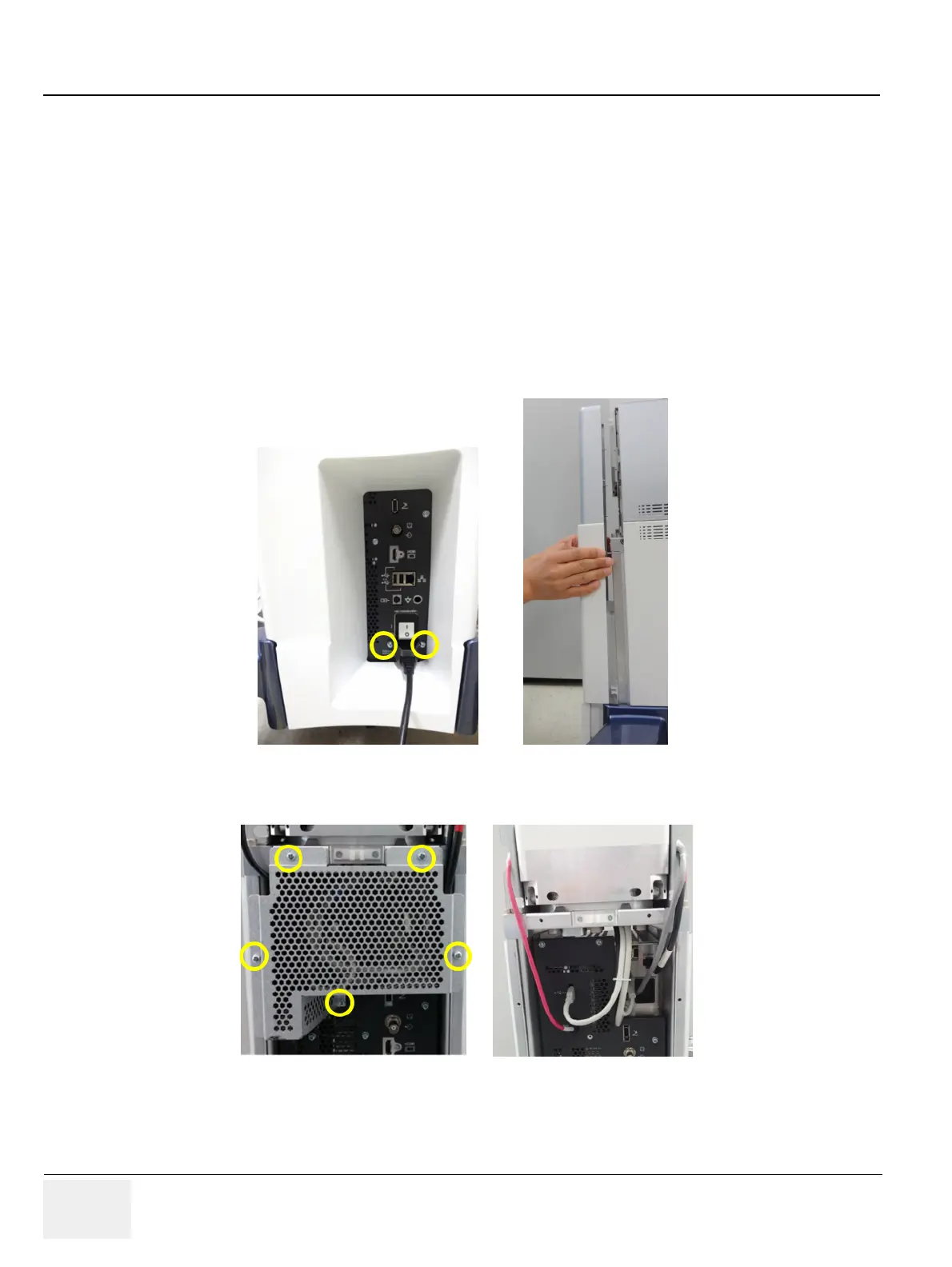

Figure 8-216 Removing POWER CORD FIX BRKT, POWER CORD and REAR COVER

Figure 8-217 Unscrewing 5 screws to remove REAR CABLE COVER BRKT and disconnect cables
