5-10-7 Utilities
The Utilities page contains a variety of Windows utility tools to indicate the status of the system,
in addition to various other tools.

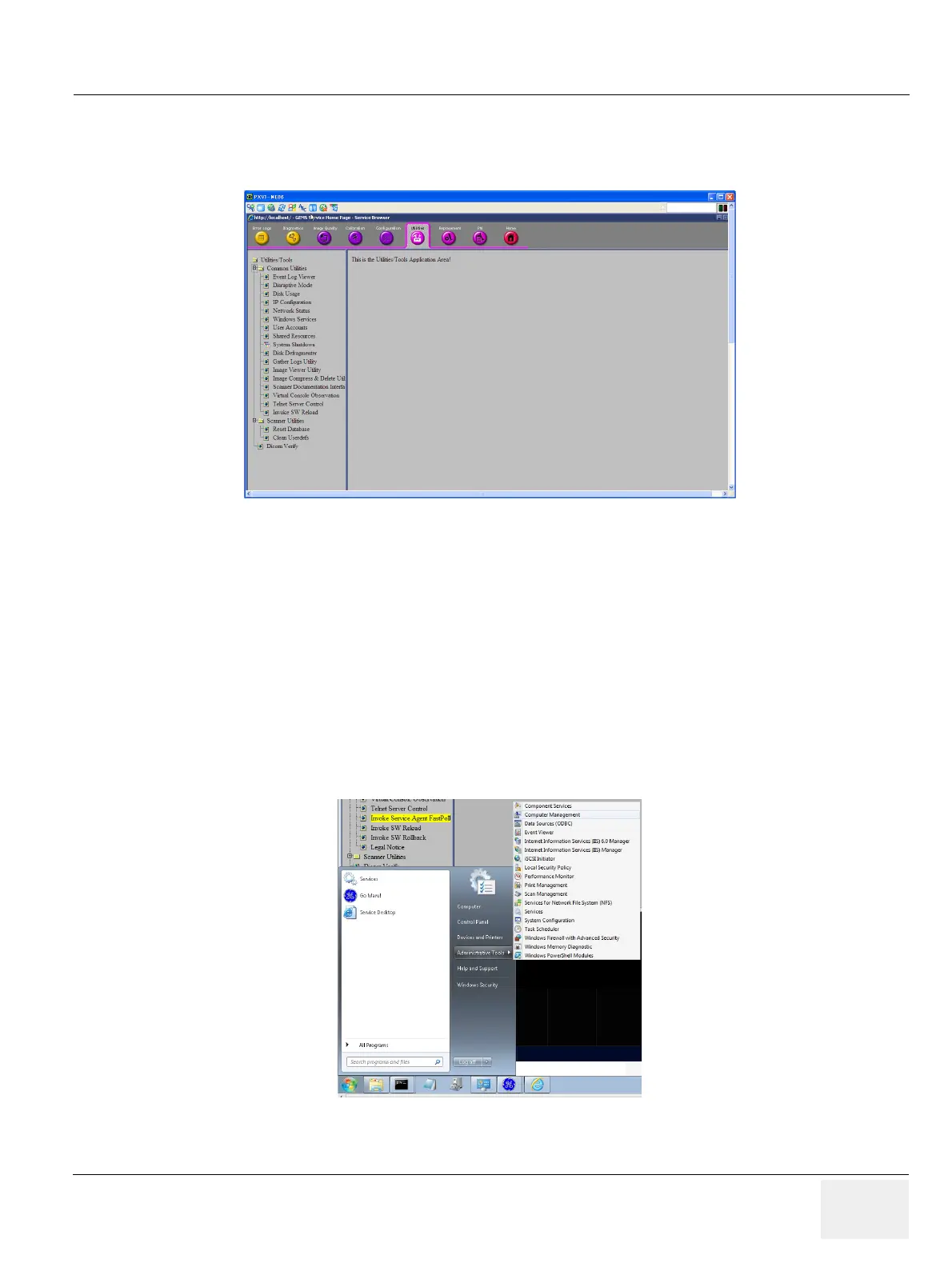

Figure 5-22
Note on Utilities:
One of the menu selections “Disk Defragmenter” invokes Windows
®
application executed in separate
window. Because CSD window is set to be "always on top", new window is forced to appear on behind
CSD, and hence, not viewable.
In order to invoke this functionality, exit to desktop first, and select Windows
®
application for disk
defragmentation.
5-10-7-1 Disk Defragmenter
1) Exit to Windows
2) Select Start -> Programs -> Administrative Tools -> Computer Management
Figure 5-23
