GERAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

5-34 Section 5-10 - Common Service Desktop (CSD) (R1, R2, R2.5 only)

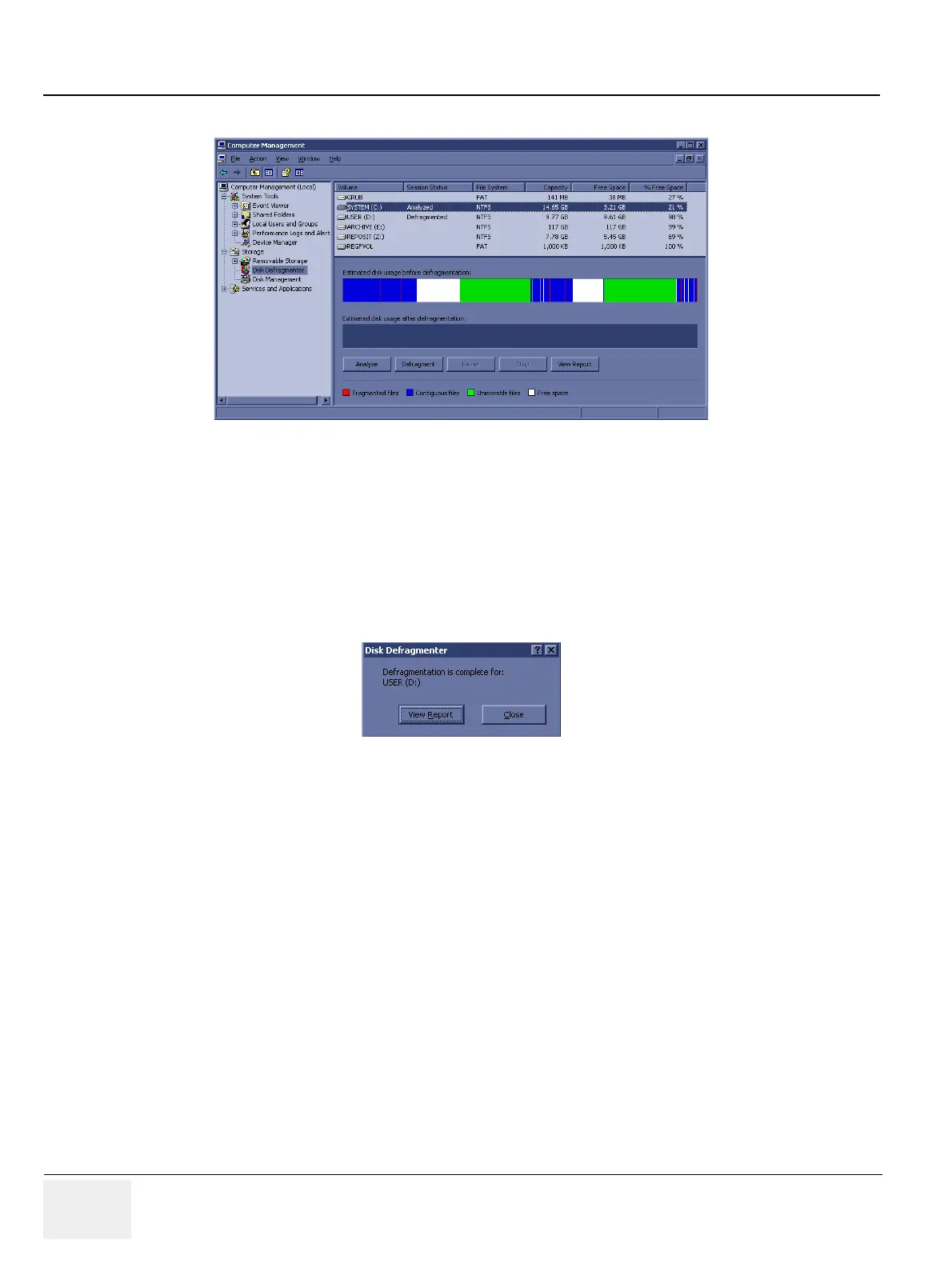

3) Select “Disk Defragmenter” from left pane

Figure 5-24

4) Select Disk Drive to defragment on right (upper) pane

5) Press “Defragment” to execute defragmentation of the selected disk

NOTE: Press “Analyze” button to see current status of the disk

6) Wait until process completes and report as such.

NOTE: Disk defragmentation - depending on status - may take hours to complete
