9-8 Section 9-5 - Plastics Covers (Front/Sides/Rear)

9-5-2 Plastics Covers (Front/Sides/Rear) (R3)

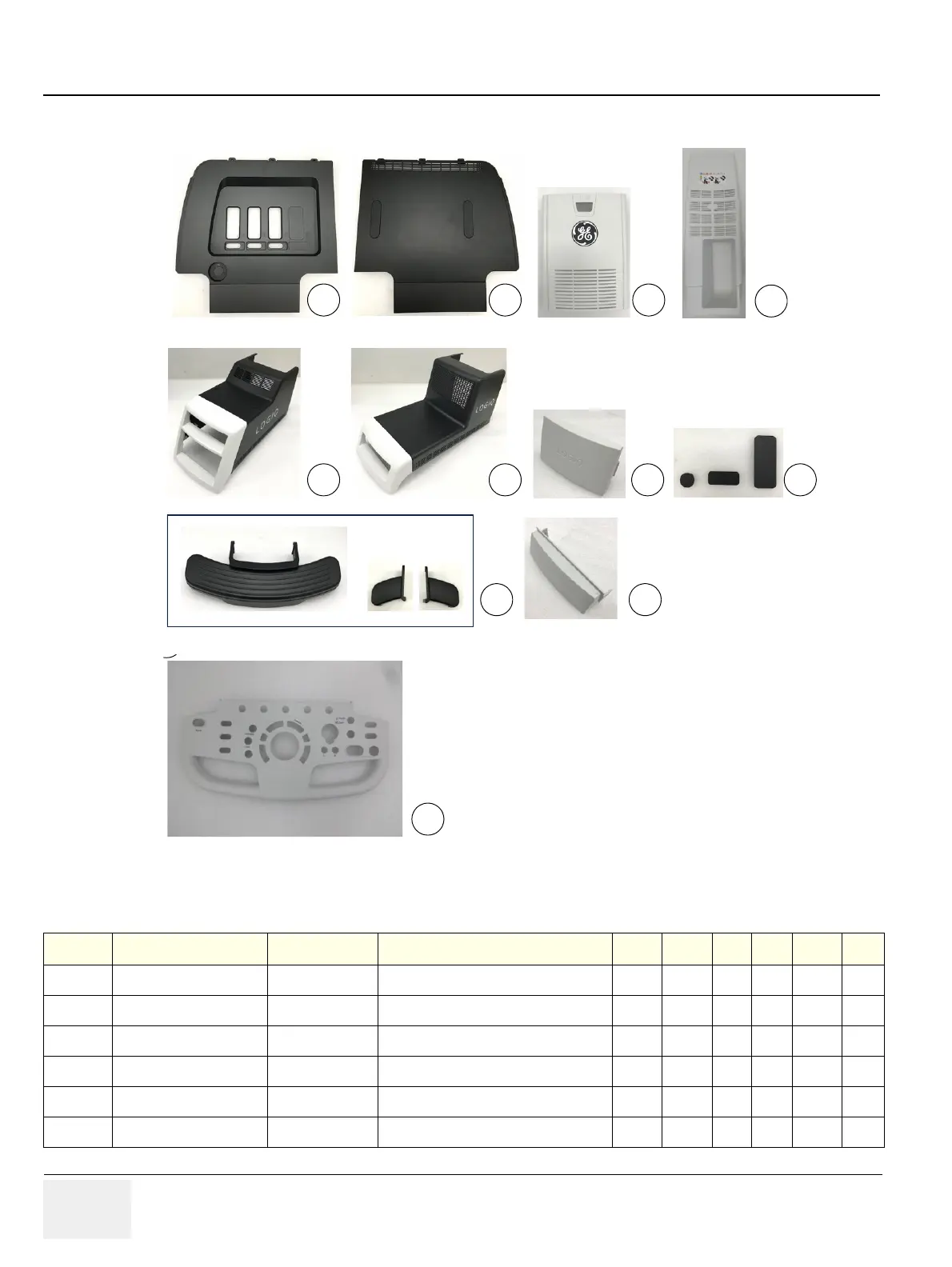

Figure 9-4 Plastics Covers (Front/Side/Rear) (R3)

Table 9-6 Plastic Covers (R3)

Item Part Name Part Number Description Qty FRU R1 R2 R2.5 R3

101-1

Side Cover R Assy R3

5794893 Assy Plasic 1 1 N N N Y

102-1

Side Cover L Assy R3

5794894 Assy Plastic 1 1 N N N Y

103-1

Front Cover Assy R3

5794912 Assy Plastic 1 1 N N N Y

104-1

Rear Cover Assy R3

5794891 Assy Plastic 1 1 N N N Y

105-1

High Cabinet Assy R3

5794899 Assy Plastic 1 1 N N N Y

106-1

Low Cabinet Assy R3

5794892 Assy Plastic 1 1 N N N Y

101-1

102-1

103-1

104-1

105-1

106-1

107-1

108-1

109-1

110-1
