GE
RAFT
LOGIQ P9/P7
D
IRECTION
5604324
, R
EVISION
11
DRAFT
(J
ANUARY
24, 2019)
S
ERVICE
M
ANUAL
8-112
Section 8-17
- Replacement a
round Nest Box
2)
Remove MCWD board from MCB
assy. Refer to following figure.
NOTE:
Be careful not to damage CWD conne
ctor.

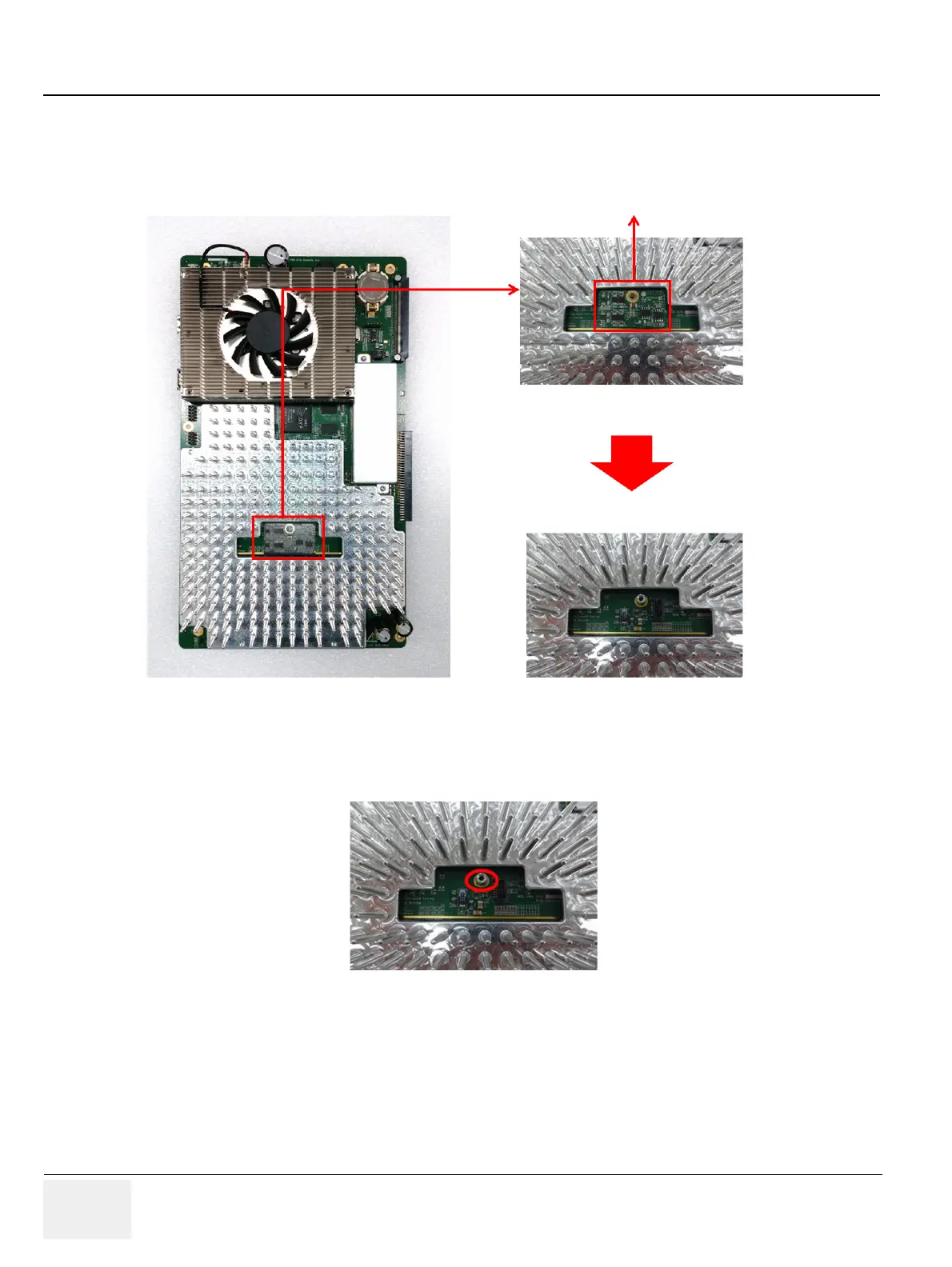

Figure 8-126 Removal of MCWD board.
3)
Remove Stud on MCB assy and carefully lift
up the MCB assy. Refer to following figure.
Figure 8-127 Stud position on MCB board.
MCWD board assy
437
439
