GERAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

8-120 Section 8-19 - Replacement of Bottom fan

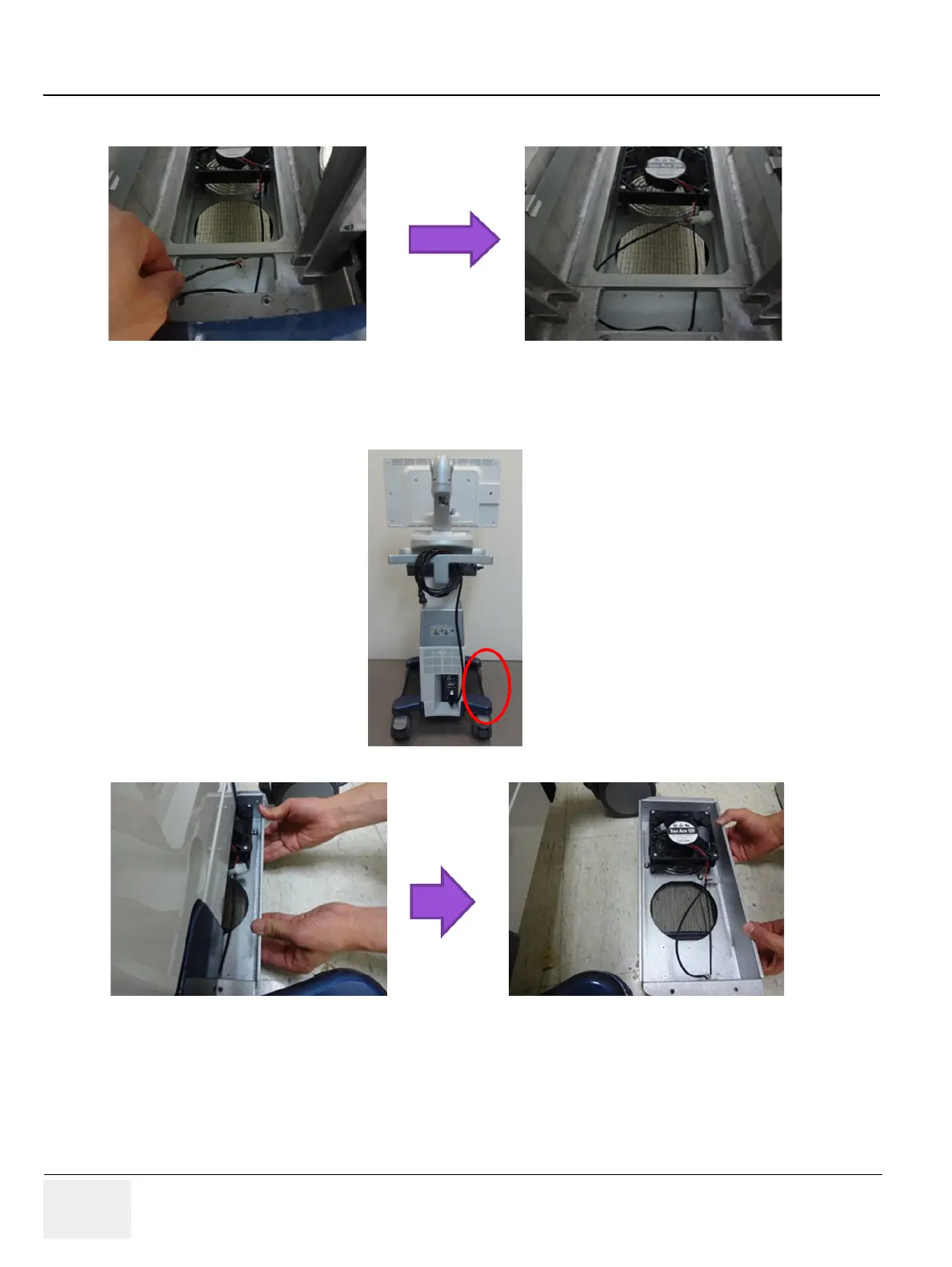

4) Place bottom fan cable not to be entangled on system frame as following figure

Figure 8-140 Placing bottom fan connector

5) Pull out bottom fan assy as following figure

Figure 8-141 Removal of bottom fan Assy
