Chapter 3 - Setup Instructions 3-29
5) After complete power down, disconnect the main power cable from the system or unplug it from the
AC wall outlet socket.
6) Press on the brakes to block the front caster wheels.
7) Disconnect probes. (Turn the probe locking handle counterclockwise and then pull the connector
straight out of the probe port.)

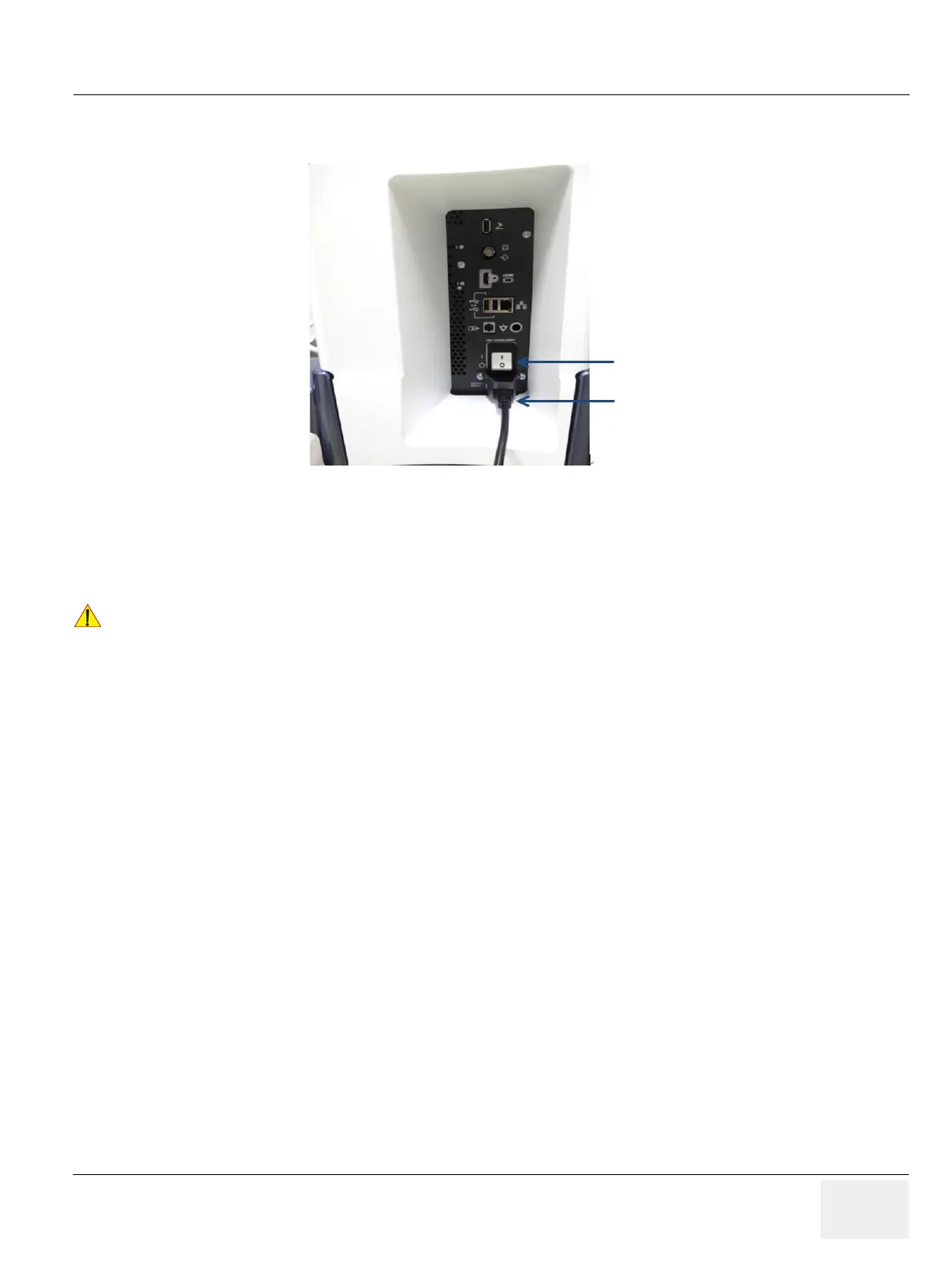

Figure 3-17 Circuit and main power at rear of system
CAUTION
!! CAUTION:
DO NOT disconnect a probe while running (Live Scan “Write” mode)!
A software error may occur. In this case switch the unit OFF (perform a reset).
Circuit Breaker
Main Power
