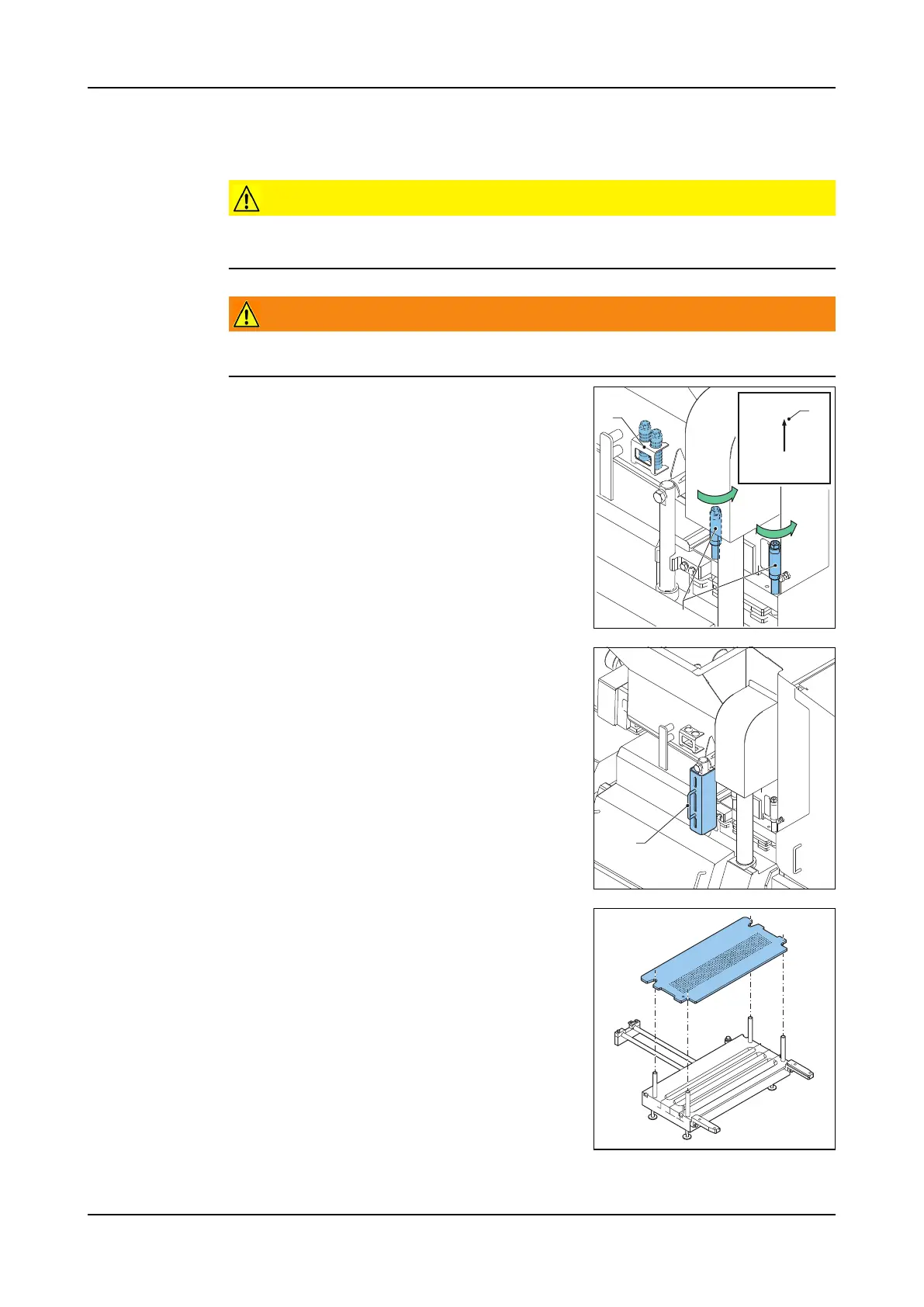

4.3.2 Exchange the form plate
Caution!
Check all plates before use in the machine.
Refer to the section 4.3.1 "Handling of the plates".
Raise the hop-
per
Warning!
Always place a support block when the hopper is raised. This is necessary
to prevent crushed fingers due to unintended or accidental lowering.
1. Loosen the four hopper nuts (A).
2. Place the hopper nuts in the special holder
(B) on the machine.
3. Push the Hopper up button (C). The hopper
goes up.
4. Raise the hopper to its highest position.
Install the sup-
port block
1. Install the support block (A) or a comparable
block system. Refer to the picture alongside.
Install the bot-
tom plate
1. Place the bottom plate on the base plate.
A
B
C
A
