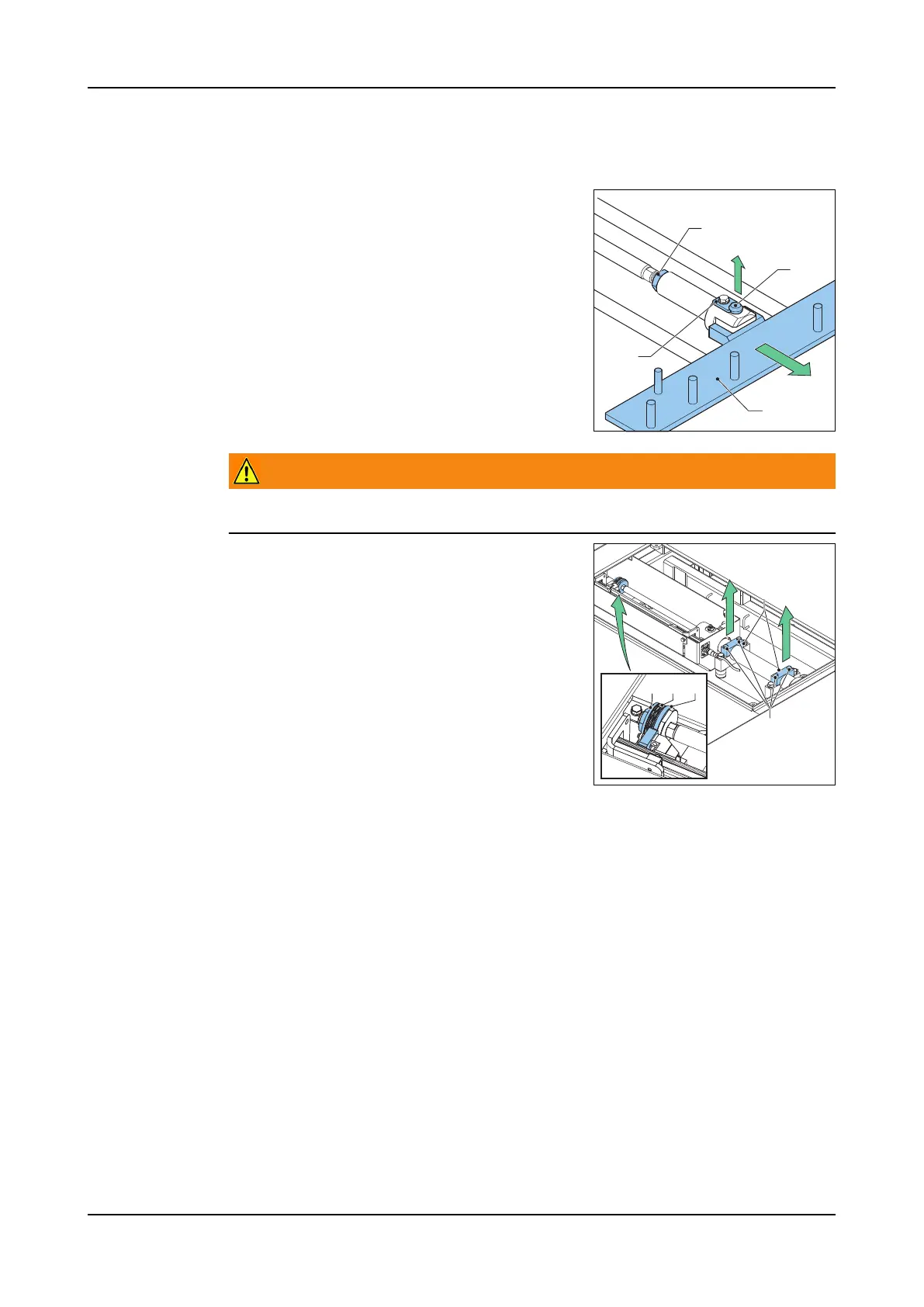

6.2.7 Form plate cylinder
Form plate con-
nection bracket
1. Remove the lock bolt (D).
2. Take away the pin (B).
3. Slide away the form plate connection brack-
et (C).
4. Unscrew the locknut (A).
5. Take away the rod end.
Cylinder
Warning!
Only remove the upper part of the clamping blocks. Do not change the align-
ment of the lower part of the clamping block.
1. Disconnect the hydraulic hoses.
2. Remove the nut and washer (A).
3. Remove the spring (B)
4. Disconnect the linear position sensor (E)
from the cylinder.
5. Remove the clamping block bolts (C) of both
blocks.
6. remove the upper parts of both clamping
blocks (D).
7. Remove the cylinder.
Assembly 1. Assemble in the reverse order.
2. Install a form plate and a knockout.
3. Check the alignment of the form plate and the knockout. Refer to section 6.2.3
"Knockout alignment".
A
B
D
C
C
D
EBA
