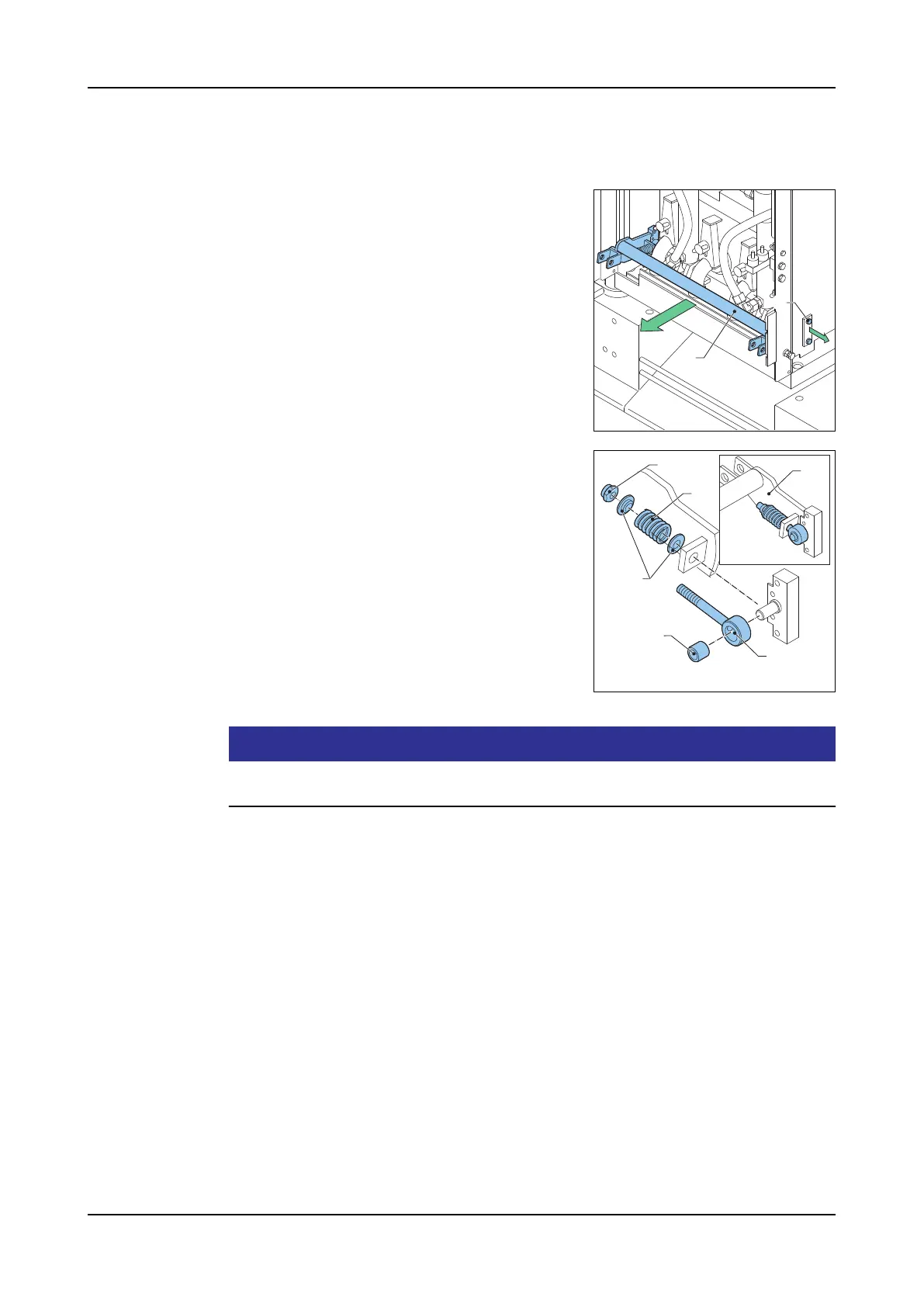

6.2.5 Knockout mechanism
Knockout
mechanism
1. Remove the rod head. Refer to section 6.2.4
"Knockout cylinder rod end bearing".
2. Loosen the two bolts (A) on both sides of the
machine.
3. Take away the knockout mechanism (B).
Bearing
1. Loosen the nylock nuts (A).
2. Take away the springs (B) and the rings (F).
3. Take away the cross beam (C).
4. Take away the rod end (D).
5. Replace the bearing (E) in the rod end.
Assembly 1. Assemble the knockout mechanism in the reverse order.
Attention!
The spring has to be tensioned to a level where it can be compressed with
a reasonable amount of manual force.
A
B
A
B
D
C
F
E
