6.2.15 Hopper lift mechanism

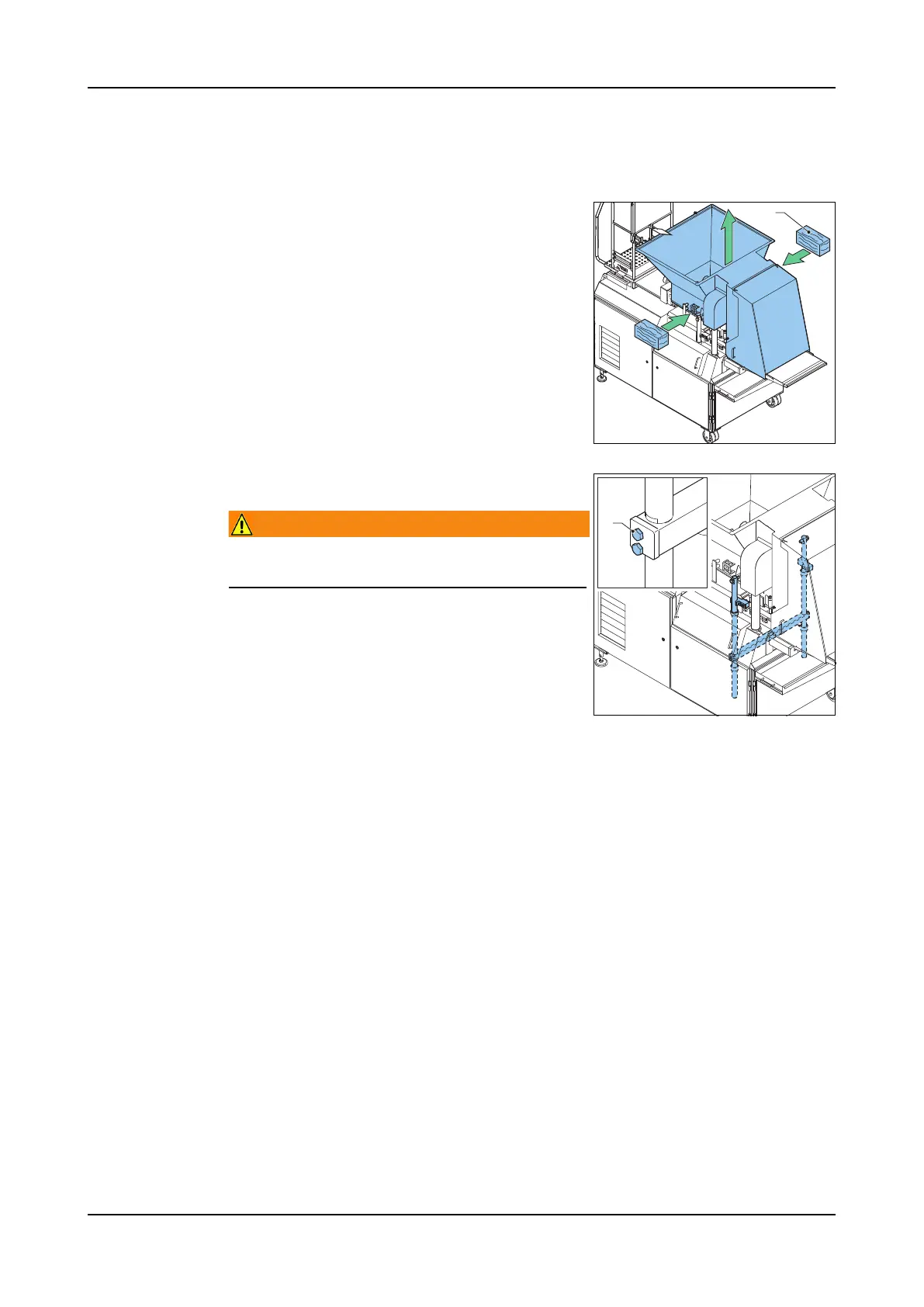

Support blocks If, for any reason, the hopper lift mechanism must be dismantled:
1. Push the Hopper up button. The hopper
goes up.
2. Place two wooden support blocks (A), with a
maximum width of 75 mm, under the hopper.
3. Push the Hopper down buttons at the same
time. The hopper lowers onto the support
blocks.
4. Fasten the hopper-nuts to secure the hop-
per.
5. Turn the main switch to OFF. The machine
is OFF.
Cross beam
1. Loosen the four cross beam bolts (A).
Warning!
Do not loosen the bolts if the hopper is not
supported.
2. Take away the cross beam.
Assembly 1. Tighten the cross beam bolts to 40 Nm. Secure the bolts with Loctite 243.
2. Turn the main switch to ON. The machine is ON.
3. Remove the hopper-nuts.
4. Push the Hopper up button. The hopper goes up.
5. Take away the wooden support blocks.
A
A
